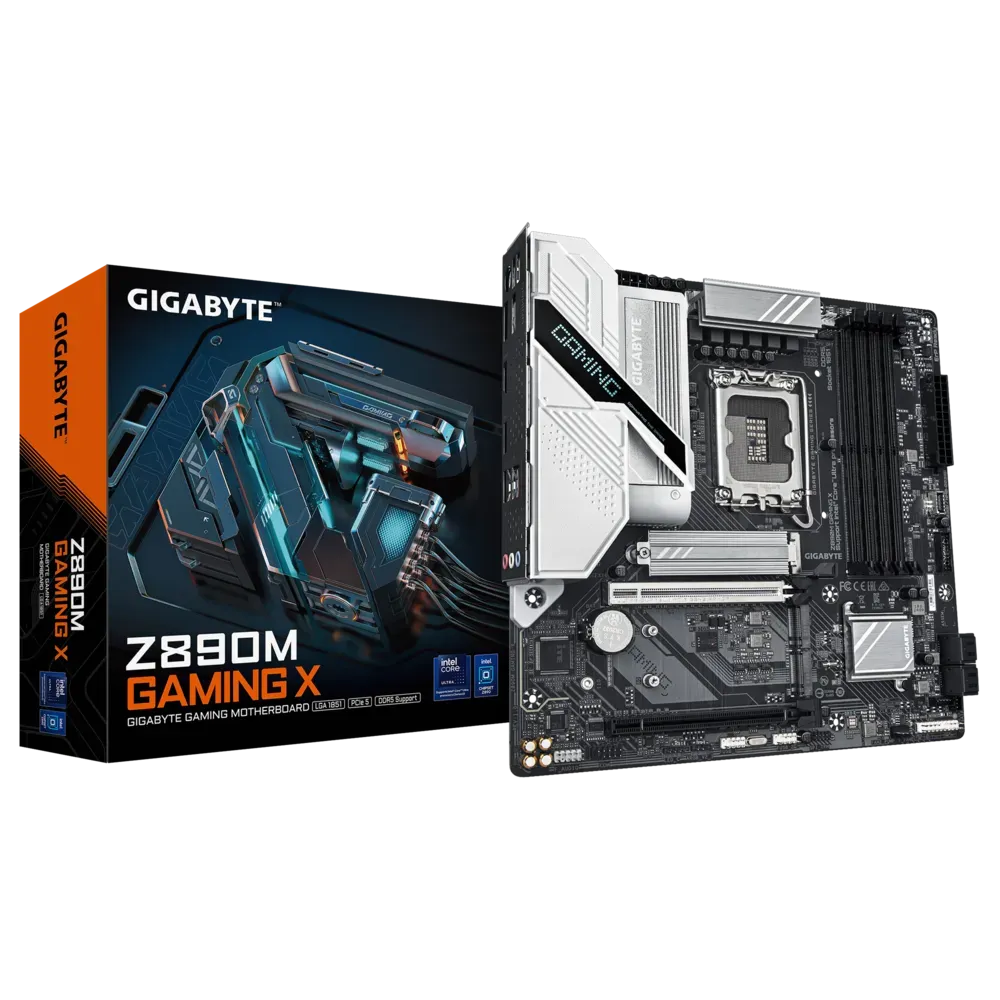

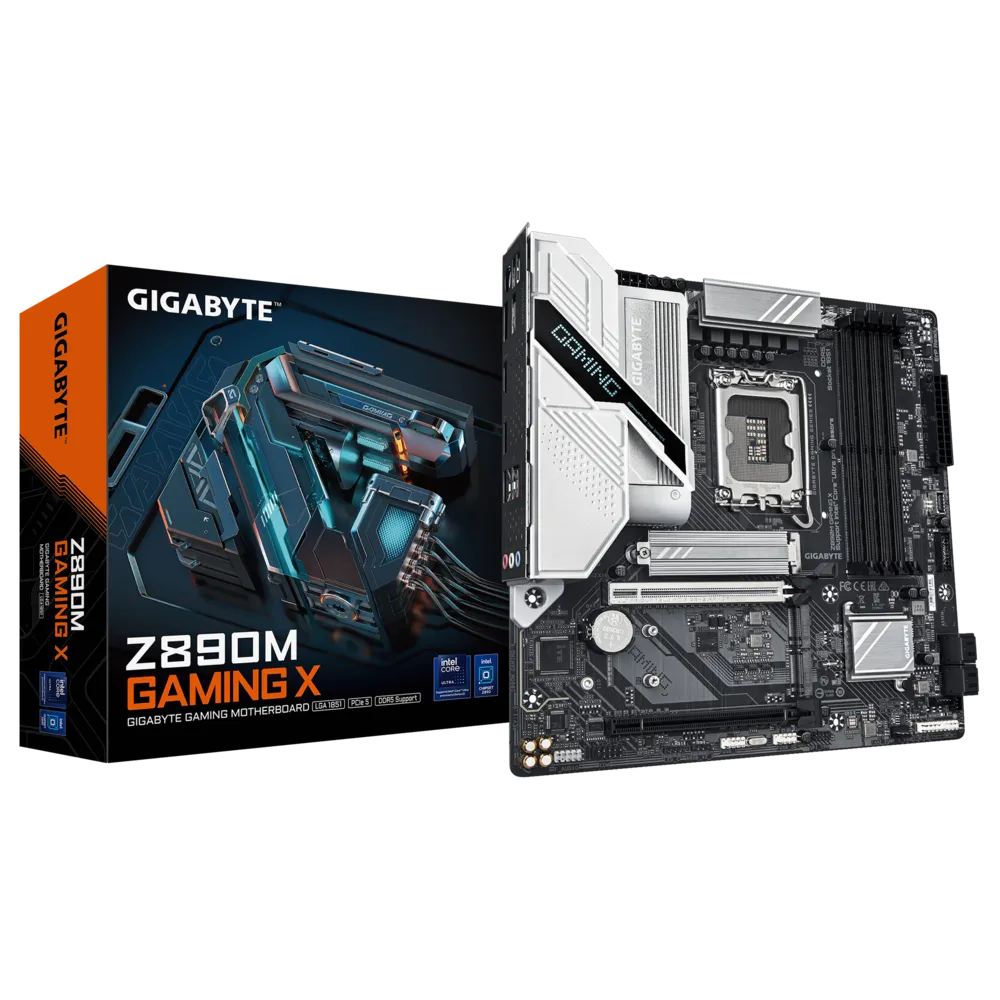

Gigabyte Z890M Gaming X ( Micro-ATX )

Name: Gigabyte Z890M Gaming X ( Micro-ATX )
Brand: Gigabyte
SKU: 7c102d2
Availability: InStock

The Gigabyte Z890M Gaming X is a compact micro-ATX motherboard for Intel Core Ultra Series 2 (Arrow Lake-S) processors. It supports up to 256 GB DDR5 RAM (up to DDR5-9066+ OC), PCIe 5.0 for the primary GPU slot, has 3 M.2 slots, 4 SATA ports, 2.5 GbE LAN but no Wi-Fi, and multiple display outputs (HDMI 2.1 and dual DisplayPort 2.1). It features good VRM cooling, supports CPU overclocking, and is designed for high-performance gaming and productivity in a smaller form factor.

This item is not available for purchase. Contact us for more information.

Specifications

Processor Support	Intel Core Ultra Series 2 (Arrow Lake-S) processors with LGA 1851 socket.
Chipset	Intel Z890.
Form Factor	Micro-ATX (244 mm x 244 mm).
Power Design	Digital 8+1+2 phase VRM solution for stable power delivery.
Memory
- 4 DDR5 DIMM slots supporting up to 256 GB total. - Memory speeds up to DDR5-9066+ MHz (OC) with dual channel and XMP support.
Expansion Slots
- 1 x PCIe 5.0 x16 slot (CPU-driven) with PCIe EZ-Latch for tool-less GPU installation. - 1 x PCIe 4.0 x16 slot (x4 lanes, chipset-driven).
Storage
3 M.2 slots
- 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4. - 4 SATA 6 Gb/s ports (supporting RAID 0,1,5,10).
Networking
- 2.5 GbE LAN port (Realtek RTL8125). - No built-in Wi-Fi.
Audio	Realtek ALC897 codec supporting 8-channel HD audio.
Rear I/O Ports
- 1 x HDMI 2.1 port (4K @ 60Hz). - 2 x DisplayPort 2.1 ports (4K @ 60Hz). - 3 x USB 3.2 Gen1 (USB 3.0) Type-A ports. - 2 x USB 2.0 Type-A ports. - 1 x RJ-45 LAN port. - 3 x 3.5 mm audio jacks. - 1 x Mini-Din 6 (PS/2) port.
Internal Headers
USB
- 1 x USB 3.2 Gen2 Type-C (front panel,5 Gb/s) - 2 x USB 3.2 Gen1 - 4 x USB 2.0 headers. - Multiple fan headers for CPU, chassis, and AIO pump cooling.
RGB headers	2 addressable, 1 standard. - Serial RS-232 connector.
Cooling	VRM Thermal Armor and M.2 Thermal Guards for efficient heat dissipation.
Special Features
- AI-assisted features like AI Perfdrive and D5 Bionic Corsa for optimized memory performance. - PCIe EZ-Latch for easier installation/removal of GPUs and M.2 SSDs. - Supports Windows 10 and 11 (64-bit). - Advanced overclocking features enabled by the Z890 chipset.
Physical Dimensions	244 mm x 244 mm micro-ATX board.
Warranty	3 years commercial warranty from the seller.
