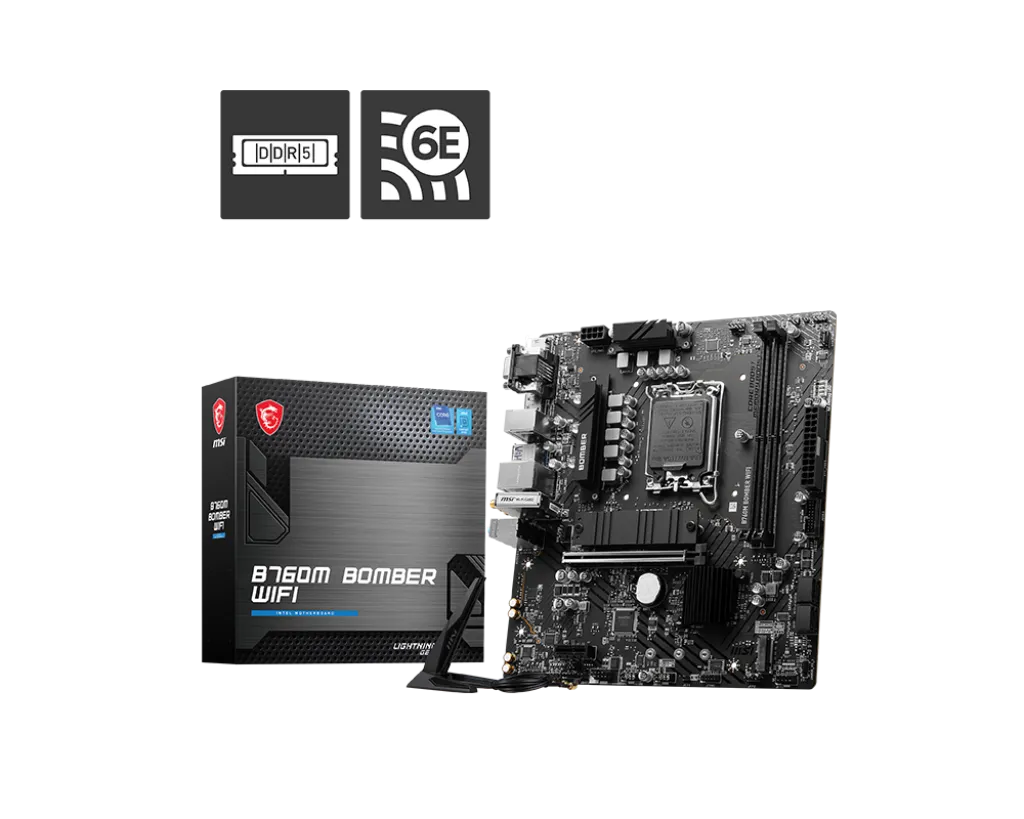

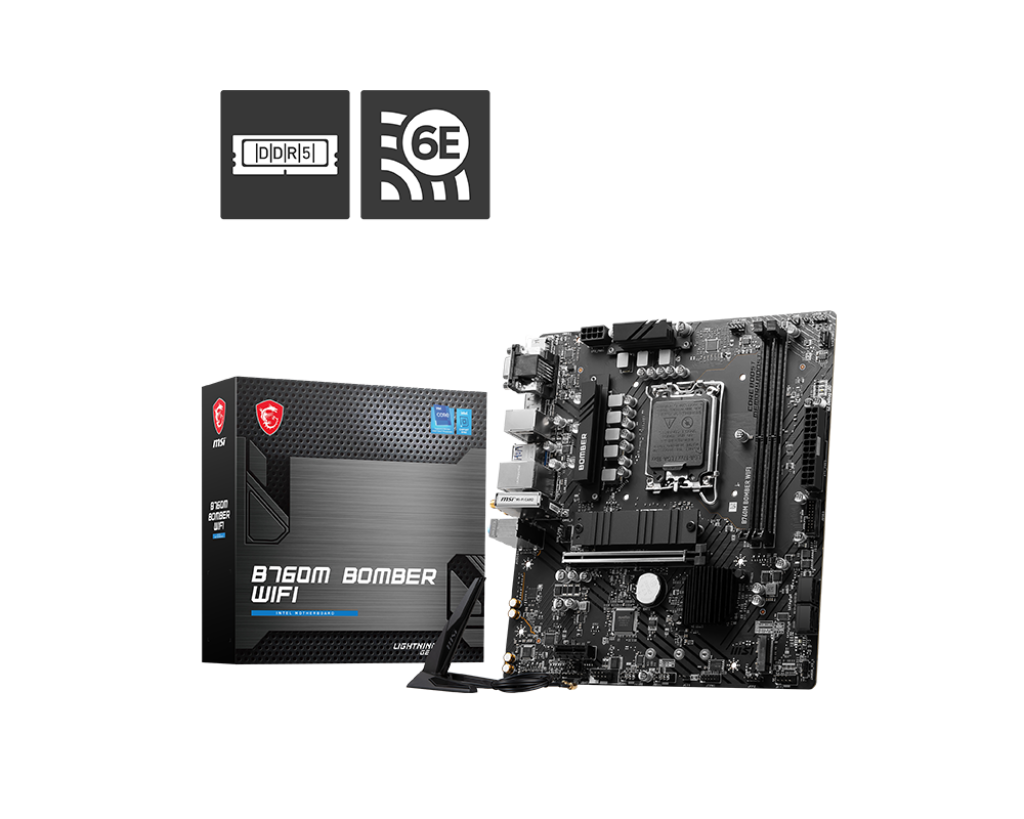

MSI B760M Bomber Wi-Fi (DDR5) ( Micro-ATX )

The MSI B760M Bomber Wi-Fi (DDR5) is a micro-ATX motherboard for Intel 12th to 14th Gen CPUs with 2 DDR5 slots (up to 96GB) supporting speeds up to DDR5-6400+ MHz, dual M.2 PCIe 4.0 slots, 4 SATA ports, HDMI 2.1, DisplayPort 1.4, 2.5Gb Ethernet, Wi-Fi 6E with Bluetooth 5.3, Realtek ALC897 audio, and a 3-year warranty. It’s a solid choice for mid-range to high-performance Intel builds needing DDR5 memory and modern connectivity.

₨. 22,999
1
Specifications
Specifications
CPU SupportSupports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors using the LGA 1700 socket.
ChipsetIntel B760.
Memory2 DDR5 DIMM slots supporting up to 96GB or even 128GB maximum capacity (depending on source) with speeds up to DDR5-6400+ MHz (overclocked). Supports Intel XMP 3.0 overclocking, dual-channel mode, non-ECC, un-buffered memory.
Expansion Slots1 PCIe 4.0 x16 slot (from CPU) and 1 PCIe 4.0 x1 slot (from chipset).
Storage2 M.2 slots - M.2_1 (from CPU) supports PCIe 4.0 x4 (Gen4), supports 2280/2260/2242 form factors. - M.2_2 (from chipset) supports PCIe 4.0 x4 or SATA mode. - Plus 4 SATA 6 Gbps ports; note SATA7 port is disabled if M.2 SATA SSD is used in M.2_2 slot.
RAID SupportRAID 0, 1, 5, and 10 for SATA storage devices.
Graphics Output
  • - 1 HDMI 2.1 port with HDR, up to 4K 60Hz.
  • - 1 DisplayPort 1.4, up to 4K 60Hz.
  • - 1 D-Sub (VGA) port for legacy monitors.
USB Ports
Rear4 x USB 3.2 Gen1 Type-A (5Gbps), 2 x USB 2.0.
Front4 x USB 2.0, 2 x USB 3.2 Gen1 Type-A.
NetworkingRealtek RTL8125B 2.5Gbps LAN and Intel Wi-Fi 6E including Bluetooth 5.3.
AudioRealtek ALC897 codec with 7.1-channel high-definition audio and Audio Boost technology.
Internal ConnectorsATX main power, CPU power, CPU fan header, 2 system fan headers, chassis intrusion, front audio, COM port, TPM 2.0 header, USB headers (both USB 2.0 and 3.2 Gen1), RGB LED connectors and addressable RGB headers.
Diagnostics4 EZ Debug LEDs for troubleshooting.
Additional FeaturesSteel Armor reinforced PCIe slot for durability and EMI protection, Core Boost digital power design for stable CPU power delivery, Memory Boost for memory overclocking and stability.
Form FactorMicro-ATX, 220mm x 243.84mm.
Operating System SupportWindows 10 and Windows 11 (64-bit).
Warranty3 years.
