MSI B860 Gaming Plus Wi-Fi (DDR5)

Name: MSI B860 Gaming Plus Wi-Fi (DDR5)
Brand: MSI
SKU: MSI-8B76EBA1
Price: 39455 NPR
Availability: InStock

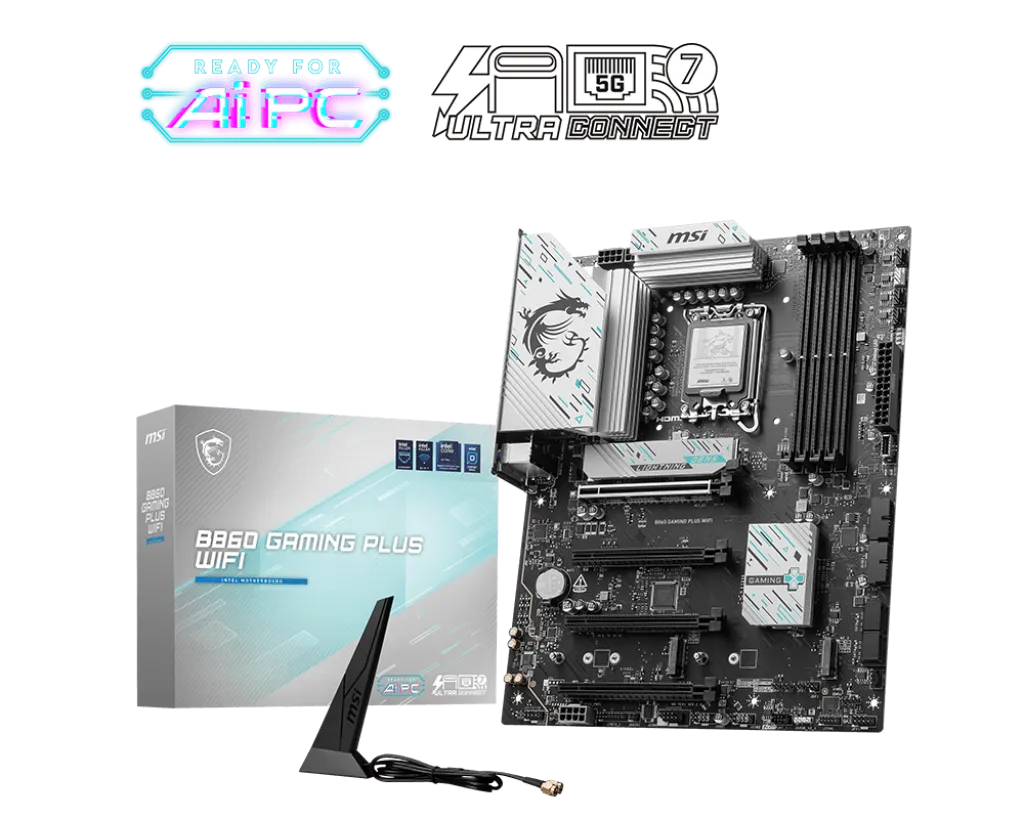

The MSI B860 Gaming Plus Wi-Fi (DDR5) is an ATX motherboard for Intel Core Ultra Processors (LGA 1851) with 4 DDR5 slots (up to 256GB, 8800+ MT/s OC), PCIe 5.0 and 4.0 x16 slots, 3 M.2 slots including PCIe Gen5 x4, DisplayPort 1.4, HDMI 2.1, Thunderbolt 4 USB-C, Wi-Fi 7, Bluetooth 5.4, 4 SATA ports, Realtek ALC897 audio, Steel Armor PCIe slot, and advanced cooling. It’s built for high-performance gaming and computing with the latest Intel CPUs and modern connectivity.

₨. 39,455

Specifications

CPU Support	Intel Core Ultra Processors (Series 2) using the LGA 1851 socket.
Chipset	Intel B860.
Memory	4 DDR5 UDIMM slots, supporting up to 256GB maximum capacity, with DDR5 speeds up to 8800+ MT/s (overclocked). Supports dual-channel memory mode and Intel XMP 3.0 profiles for memory overclocking.
Expansion Slots	4 PCIe x16 slots
PCI_E1	PCIe 5.0 x16 (from CPU).
PCI_E2, PCI_E3, PCI_E4	PCIe 4.0 slots with x1/x4/x1 lanes respectively.
Storage
3 M.2 slots
M.2_1	PCIe 5.0 x4 (2280/2260 form factors).
M.2_2	PCIe 4.0 x4 (2280/2260/2242).
M.2_3	PCIe 4.0 x2 (2280/2260). - 4 SATA 6 Gbps ports. - RAID support for 0, 1, 5, and 10 on SATA devices.
Graphics Outputs
- 1 HDMI 2.1 port supporting 4K at 60Hz. - 1 DisplayPort 1.4 supporting 4K at 60Hz. - 1 Thunderbolt 4 USB Type-C port supporting DisplayPort 2.1 with up to 4K@120Hz or 8K@60Hz (requires processors with integrated graphics).
USB Ports
Rear	4 USB 2.0, 2 USB 3.2 Gen1 (5Gbps) Type-A, 2 USB 3.2 Gen2 (10Gbps) Type-A, 1 Thunderbolt 4 USB Type-C.
Front/internal headers	4 USB 3.2 Gen1 Type-A, 1 USB 3.2 Gen2 Type-C.
Networking
- Intel Killer E5000 5Gbps Ethernet LAN. - Intel Killer Wi-Fi 7 (2.4 GHz, 5 GHz, 6 GHz bands). - Bluetooth 5.4.
Audio	Realtek ALC897 codec with 7.1-channel high-definition audio and Audio Boost technology.
Power and Cooling
- 12+1+1+1 Duet Rail Power System with P-PAK MOSFETs. - 8+4-pin CPU power connectors. - Extended heatsinks with MOSFET thermal pads rated 7 W/mK. - EZ M.2 Shield Frozr II for M.2 thermal protection. - Frozr Guard and AI Cooling for fan and thermal management.
Additional Features
- Core Boost and Memory Boost for stable and optimized power delivery and memory performance. - Steel Armor reinforced PCIe x16 slot. - EZ DIY features including EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna. - 4 EZ Debug LEDs for troubleshooting. - RGB and Addressable RGB LED headers. - TPM header for security module support
Form Factor	ATX (243.84mm x 304.8mm).
Operating System Support	Windows 11 64-bit.
Warranty	1 year worldwide coverage.
