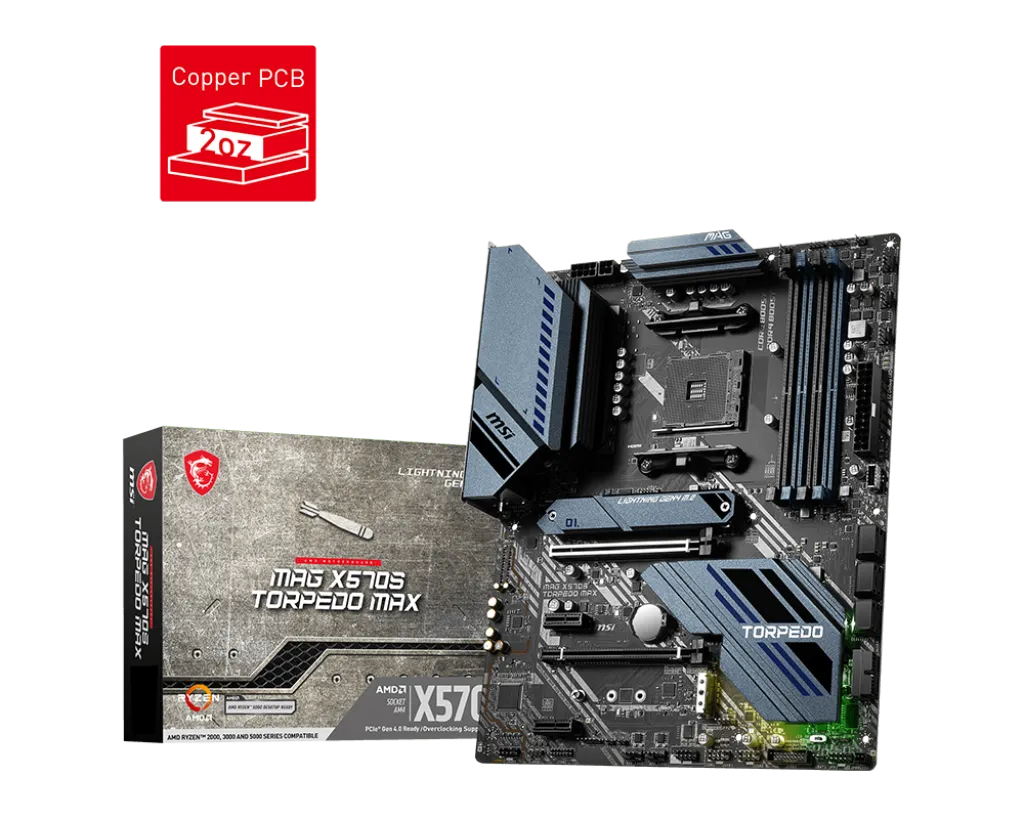

MSI MAG X570S Torpedo Max

The MSI MAG X570S Torpedo Max is a gaming ATX motherboard with AMD X570S chipset for AM4 Ryzen CPUs. It supports up to 128GB DDR4 (5100 MHz OC), 2 PCIe 4.0 x16 slots with CrossFire, 2 M.2 Gen4 slots, 6 SATA ports, 2.5 GbE and 1 GbE LAN, 7.1-channel HD audio, HDMI 2.1, strong power delivery, advanced cooling, customizable RGB, and user-friendly features—great for gamers and enthusiasts.

₨. 38,499
1
Specifications
Specifications
CPU SupportCompatible with AMD Ryzen 5000, 4000 G-Series, 3000, and 2000 series processors on AM4 socket.
ChipsetAMD X570S.
Memory
  • - 4 DDR4 DIMM slots supporting up to 128GB RAM,
  • - Supports speeds up to DDR4 5100 MHz (overclocked),
  • - Dual-channel architecture.
Expansion Slots
  • - 2 PCIe 4.0 x16 slots (supporting AMD CrossFire multi-GPU),
  • - 2 PCIe 3.0 x1 slots.
Storage
  • - 2 M.2 slots with PCIe Gen4 x4 support for high-speed NVMe SSDs,
  • - 6 SATA 6Gb/s ports supporting RAID 0, 1, and 10.
Networking
  • - 1 x Realtek 8125B 2.5Gbps LAN controller,
  • - 1 x Realtek RTL8111H 1Gbps LAN controller,
  • - MSI LAN Manager for optimized gaming network traffic.
AudioRealtek ALC897 codec providing 7.1-channel high-definition audio with Audio Boost technology for immersive sound.
Video OutputHDMI 2.1 supporting 4K at 60Hz via integrated graphics (CPU dependent).
Power DeliveryRobust design with MSI Core Boost technology and extended heatsinks ensuring efficient thermal performance.
CoolingExtended heatsink design with thermal pads for effective heat dissipation under heavy workloads.
USB Ports
  • - Multiple USB 3.2 Gen 2 Type-A and Type-C ports,
  • - USB 3.2 Gen 1, and USB 2.0 ports for various connectivity needs.
Other Features
  • - Customizable RGB lighting with multiple RGB and ARGB headers,
  • - EZ Debug LEDs for troubleshooting,
  • - Clear CMOS and BIOS Flashback buttons for easy BIOS updates,
  • - Pre-installed I/O shield,
  • - Support for TPM module,
  • - Multiple fan headers including CPU, pump, and system fans,
DimensionsStandard ATX (305 mm x 244 mm).
