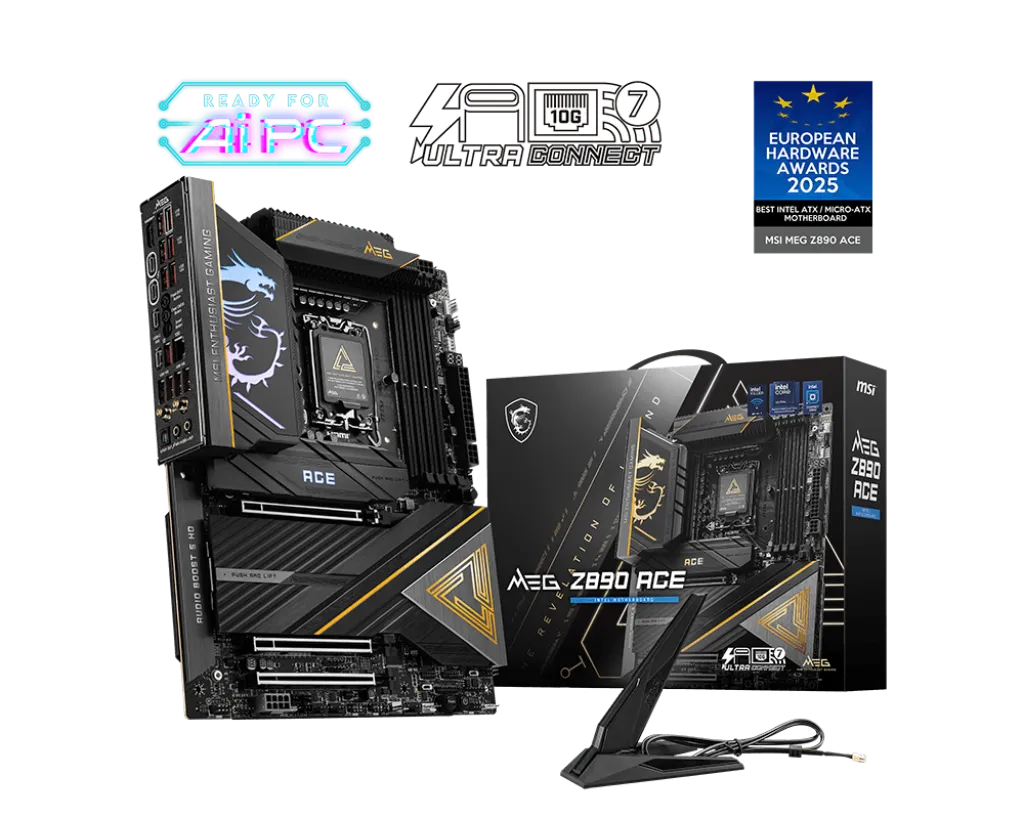

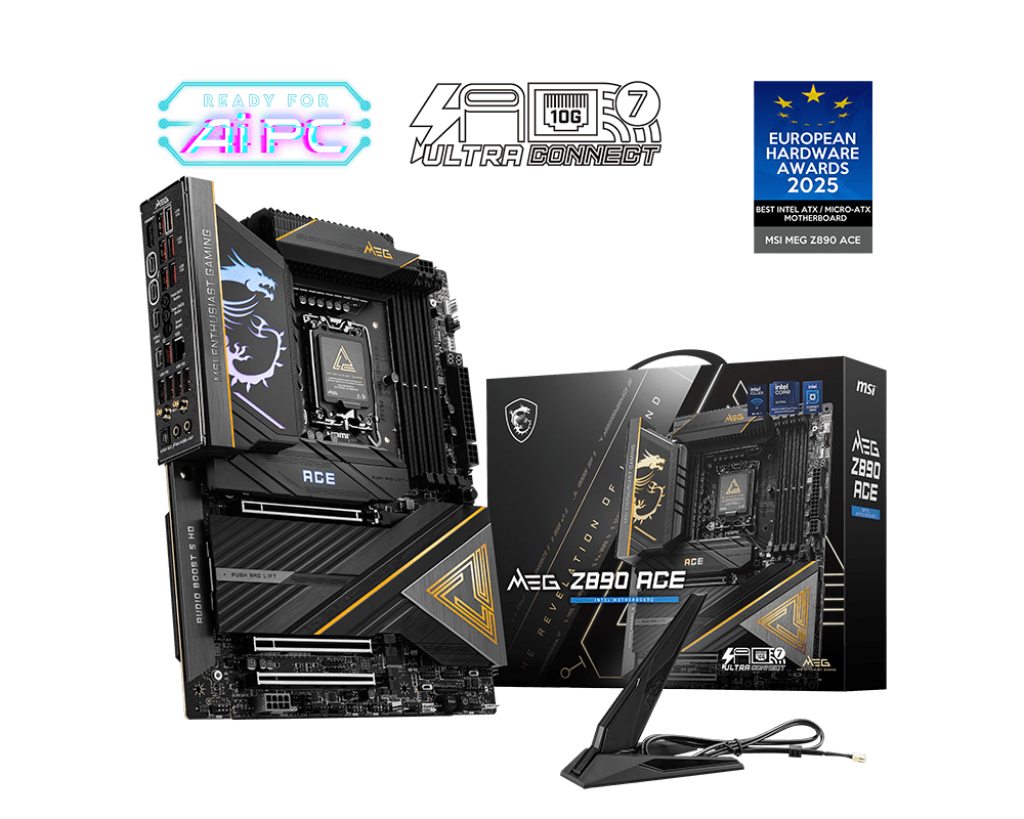

MSI MEG Z890 ACE (DDR5)

A premium ATX motherboard for Intel Core Ultra Processors with 4 DDR5 slots (up to 256GB, 9200+ MT/s OC), robust 24+2+1+1 power phases, 3 PCIe x16 slots (two PCIe 5.0), 5 M.2 slots (2 PCIe Gen5), HDMI 2.1, dual Thunderbolt 4 USB-C, 10 Gbps LAN, Wi-Fi 7, Bluetooth 5.4, high-end 7.1 audio, advanced cooling, multiple high-speed USB ports, TPM 2.0, RGB lighting, and Windows 11 support. Perfect for enthusiasts and pros needing extreme performance and connectivity.

₨. 1,25,499
1
Specifications
Specifications
CPU SupportIntel Core Ultra Processors (Series 2), LGA 1851 socket.
Memory4 DDR5 UDIMM slots supporting up to 256GB total capacity. - Speeds range from 6400 MT/s (JEDEC) up to 9200+ MT/s (overclocked). - Supports Intel XMP 3.0, dual-channel, non-ECC unbuffered memory.
Power DeliveryRobust 24+2+1+1 Duet Rail power system with 110A power stages for strong overclocking and stable performance.
Expansion Slots
3 PCIe x16 slots
PCI_E1PCIe 5.0 x16 (CPU),
PCI_E2PCIe 5.0 x8 (CPU),
PCI_E3PCIe 4.0 x4 (chipset).
Storage
Five M.2 slots
M.2_1PCIe 5.0 x4 (CPU),
M.2_2PCIe 4.0 x4 (CPU),
M.2_3PCIe 4.0 x4 (chipset),
M.2_4PCIe 5.0 x4 + PCIe 4.0 x4 (CPU + chipset),
M.2_5PCIe 4.0 x4 or SATA (chipset). - Four SATA 6 Gbps ports supporting RAID 0, 1, 5, and 10 for SATA and M.2 NVMe drives.
Graphics Outputs
  • - 1 HDMI 2.1 port supporting up to 8K 60Hz resolution.
  • - 2 Thunderbolt 4 Type-C ports supporting DisplayPort 2.1 (8K 60Hz, 4K 120Hz). - Requires a CPU with integrated graphics for display output.
Connectivity
Networking
  • - 10 Gbps Marvell AQC113CS LAN.
  • - Intel Killer BE1750x Wi-Fi 7 with 320MHz channel (up to 5.8 Gbps).
  • - Bluetooth 5.4.
USB Ports
RearMultiple USB 10Gbps Type-A and Type-C ports including 2 Thunderbolt 4 ports.
Front/internalUSB 20Gbps Type-C, USB 5Gbps Type-A, USB 2.0 ports. Support for USB Power Delivery 60W on Type-C port (with proper power connection).
AudioHigh-end Realtek ALC4082 codec with ESS9219Q DAC for 7.1-channel audio, supporting 32-bit/384 kHz playback and S/PDIF output.
Cooling & Power Features
  • - Dual 8-pin CPU power connectors.
  • - Extended heatsinks with thermal pads rated for 7 W/mK.
  • - Support for multiple fan headers including CPU, pump, and system fans.
  • - Water flow connector and thermal sensors.
Additional Features
  • - TPM 2.0 header.
  • - RGB and Addressable RGB headers.
  • - EZ Debug LEDs, EZ LED control switch, and EZ DIY features like easy M.2 installation and tuning controller.
Form FactorATX (304.8 mm x 243.8 mm).
Operating System SupportWindows 11 64-bit.
