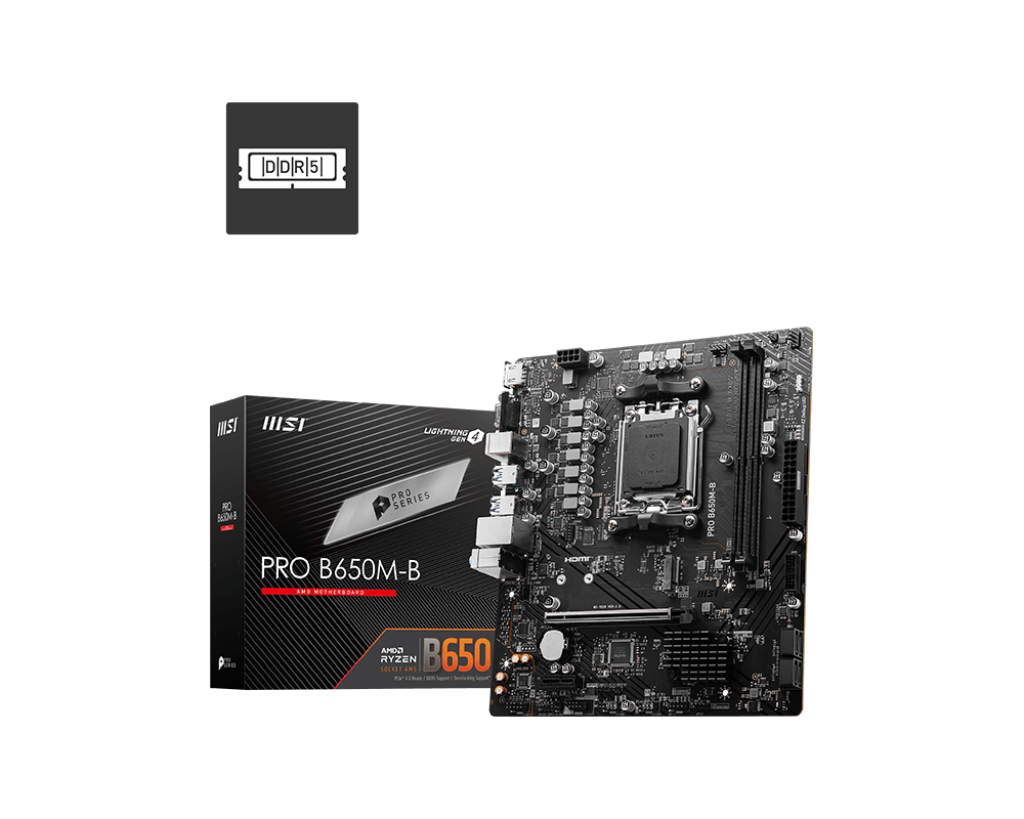

MSI PRO B650M-B DDR5
The MSI PRO B650M-B is a compact Micro-ATX motherboard for AMD Ryzen 7000/8000/9000 CPUs, featuring DDR5 memory support (up to 96GB, overclockable), PCIe 4.0 slots, fast 2.5G LAN, multiple storage options, HDMI and VGA outputs, and solid mid-range performance with modern connectivity in a small form factor.
₨. 19,499
1
Specifications
Specifications
| CPU Support | AMD Ryzen 7000, 8000, 9000 Desktop Processors (Socket AM5) |
| Chipset | AMD B650 |
| Memory | 2x DDR5 slots, max 96GB, speeds up to 6800+ MHz (OC); supports AMD EXPO profiles, non-ECC, un-buffered memory |
| PCIe Slots | 1x PCIe 4.0 x16 (from CPU), 1x PCIe 3.0 x1 (from chipset) |
| Storage | 1x M.2 PCIe 4.0 x4 slot supporting 2280/2260 devices, and 4x SATA 6Gbps ports; supports RAID 0, 1, 10 on SATA drives |
| Graphics Outputs | 1x HDMI 2.1 (up to 4K 60Hz), 1x VGA port (available only if CPU has integrated graphics) |
| Audio | Realtek ALC897 7.1-channel HD audio codec |
| Networking | Realtek RTL8125BG 2.5G LAN port for high-speed wired networking |
| USB Ports | Rear panel includes 4x USB 3.2 Gen1 Type A and 2x USB 2.0 ports; Front panel supports 4x USB 2.0 and 2x USB 3.2 Gen1 Type A |
| Internal Connectors | TPM 2.0 header, addressable RGB LED header, RGB LED header, multiple fan headers, front panel audio, COM port, and debug LEDs |
| Power Connectors | 24-pin ATX main power and 8-pin CPU power connector |
| Form Factor | Micro-ATX, dimensions approximately 215mm x 244mm |
| Operating System Support | Windows 10 and Windows 11 64-bit |
| Additional Features | Core Boost technology for stable CPU power delivery, Memory Boost for optimized memory signals, Steel Armor for PCIe x16 slot protection, EZ Debug LEDs for troubleshooting |
| Warranty | Typically 3 years |
