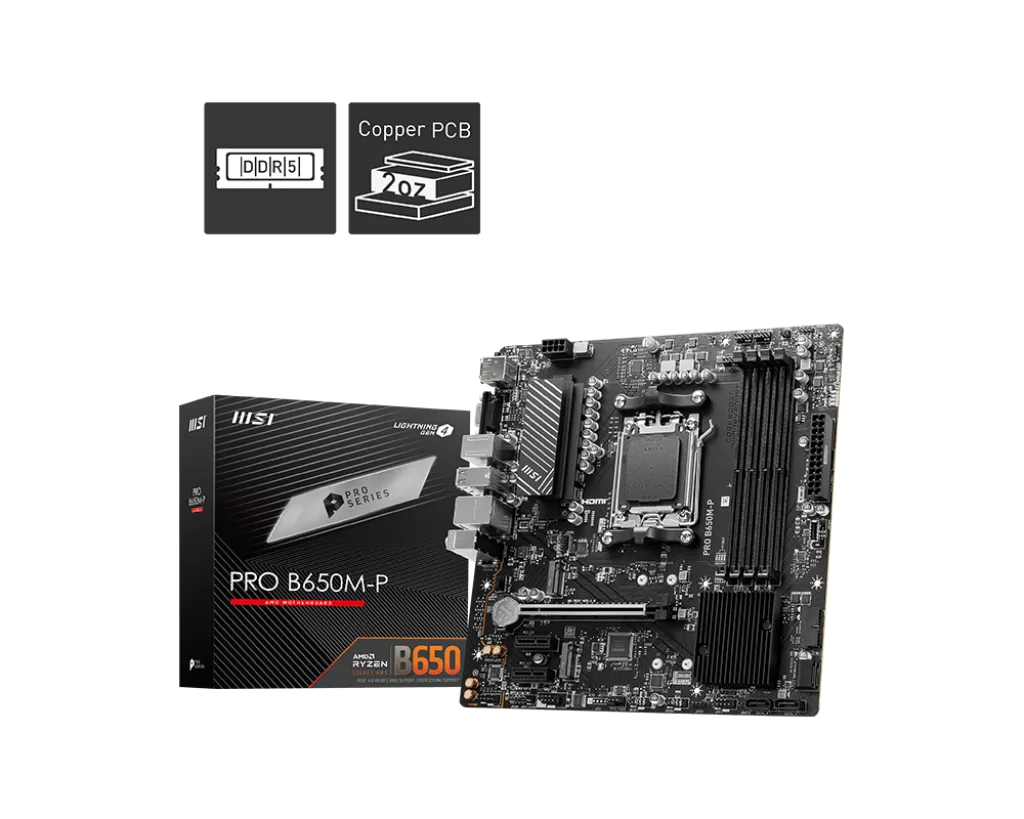

MSI PRO B650M-P DDR5
The MSI PRO B650M-P DDR5 is a Micro-ATX motherboard for AMD Ryzen 7000/8000/9000 CPUs with AM5 socket. It supports 4 DDR5 memory slots (up to 192-256GB, overclockable), dual M.2 slots, PCIe 4.0 x16 expansion, fast 2.5G LAN, multiple USB ports including USB-C, HDMI and DisplayPort outputs, and features like Core Boost and TPM 2.0 in a compact form factor.
₨. 23,499
1
Specifications
Specifications
CPU Support | AMD Ryzen 7000/8000/9000 series processors (Socket AM5) |
Chipset | AMD B650 |
Memory | 4 DDR5 slots supporting up to 192GB (some sources list up to 256GB) DDR5 RAM with high overclocking speeds exceeding 7200 MHz (OC). Supports dual-channel mode, AMD EXPO profiles, non-ECC, unbuffered memory. Maximum speeds vary depending on configurations, e.g., one DIMM per channel (1DPC) can reach 7200+ MHz. |
PCIe Slots | 1x PCIe 4.0 x16 slot (from CPU), 2x PCIe 3.0 x1 slots (from chipset) for expansion cards |
Storage | 2x M.2 PCIe 4.0 x4 slots supporting 2280 and 2260 form factors (one from CPU, one from chipset), and 4x SATA 6Gbps ports. Supports RAID 0, 1, and 10 on SATA drives, and RAID 0/1 for M.2 NVMe drives. |
Graphics Outputs | 1x HDMI 2.1 port (up to 4K 60Hz), 1x DisplayPort 1.4 (up to 4K 60Hz), and 1x VGA port (if CPU supports integrated graphics). |
Networking | Realtek RTL8125BG 2.5 Gigabit Ethernet LAN for fast wired networking. |
Audio | Realtek ALC897 7.1-channel High Definition Audio codec. |
USB Ports | A variety of USB ports including USB 2.0 (front and rear), USB 3.2 Gen1 Type A, USB 3.2 Gen2 Type A (rear), and USB 3.2 Gen2 Type C (front) supporting modern peripherals with high data transfer rates. |
Internal Connectors | TPM 2.0 header, addressable RGB LED headers, RGB LED headers, multiple fan connectors (CPU, pump, system), front panel audio, COM port, chassis intrusion header, and 4x EZ Debug LEDs for troubleshooting. |
Power Connectors | Standard 24-pin ATX main power and 8-pin CPU power connectors. |
Form Factor | Micro-ATX sized at approximately 243.84mm x 243.84mm. |
Operating System Compatibility | Windows 10 and Windows 11 64-bit. |
Additional Features | Core Boost technology for stable CPU power delivery, Memory Boost for optimized signal quality to memory modules, and Steel Armor on PCIe x16 slot for added durability. |
