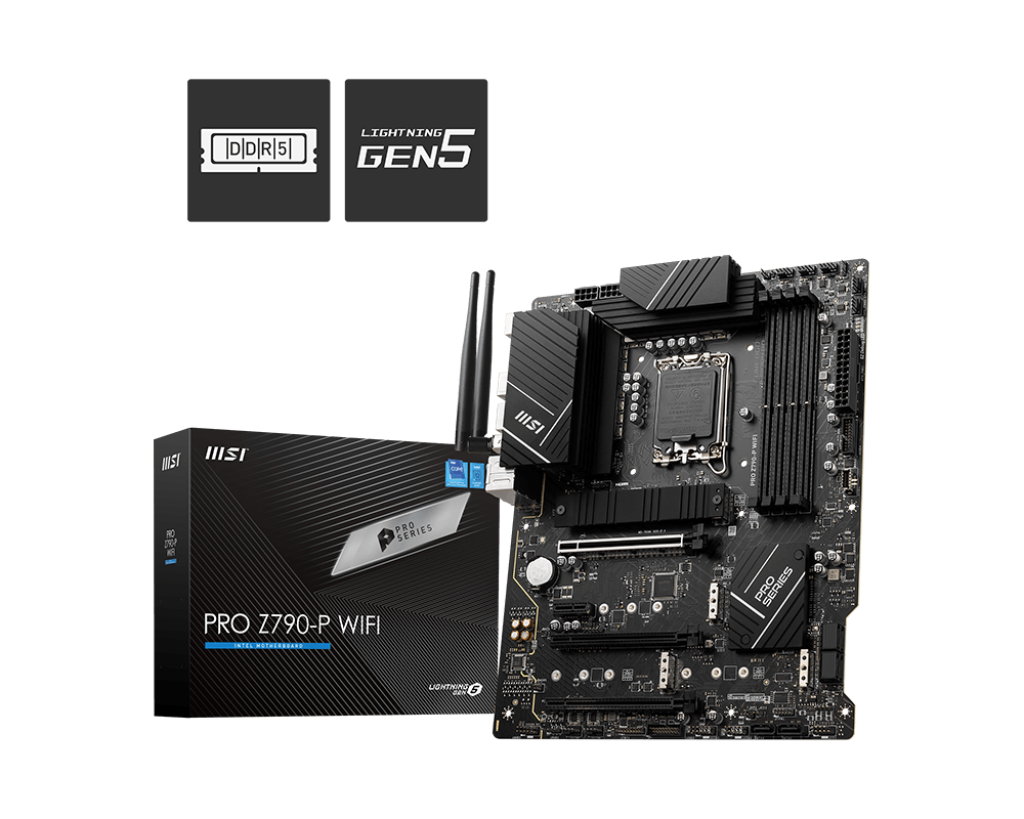

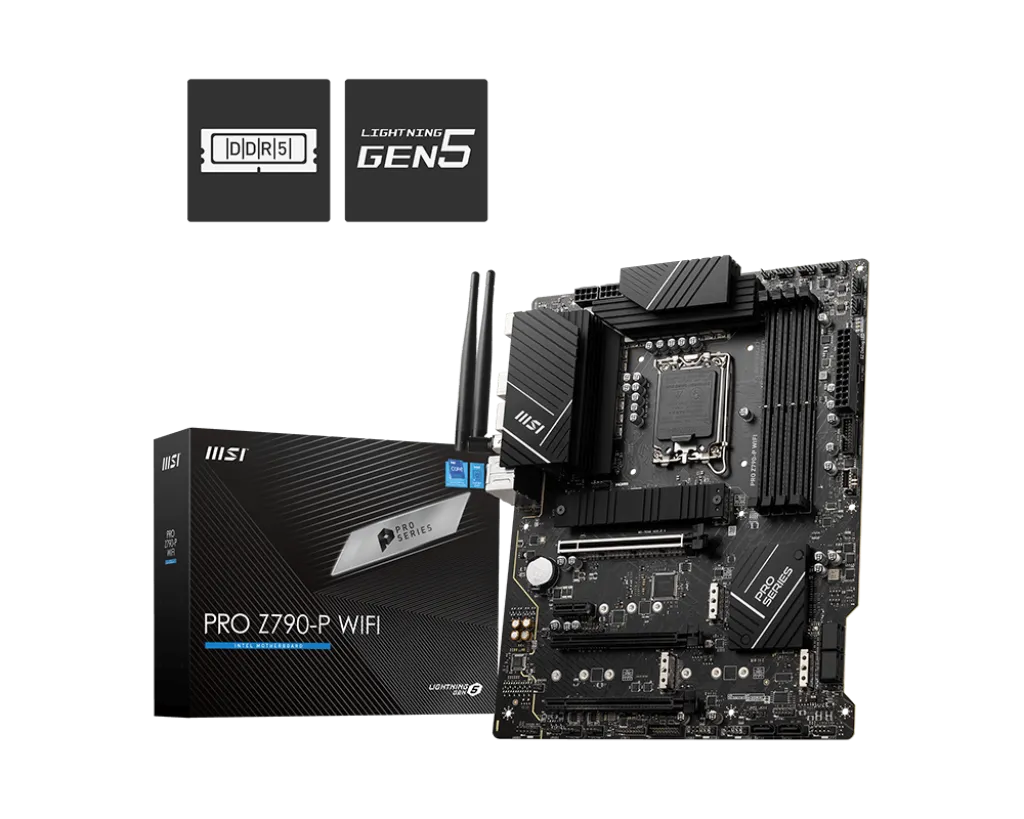

MSI Pro Z790-P Wi-Fi (DDR5)

MSI PRO Z790-P Wi-Fi (DDR5) is an ATX motherboard for Intel 12th to 14th Gen CPUs with 4 DDR5 slots (up to 256GB), PCIe 5.0 x16 and PCIe 4.0 x16 slots, 4 M.2 Gen4 NVMe slots, 6 SATA ports, HDMI 2.1 and DisplayPort 1.4 outputs, Intel 2.5G LAN, Wi-Fi 6E with Bluetooth 5.3, Realtek 7.1-channel HD audio with Audio Boost, robust power delivery, advanced cooling features, and a 1-3 year warranty. It’s built for high-performance Intel builds requiring DDR5 memory, PCIe 5.0, and comprehensive connectivity.

₨. 34,499
1
Specifications
Specifications
CPU SupportCompatible with Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors using the LGA 1700 socket.
ChipsetIntel Z790.
MemorySupports 4 DDR5 DIMM slots with dual-channel architecture. Maximum supported memory capacity is up to 256GB (some sources note up to 192GB). Memory speeds can exceed DDR5-7000 MHz with overclocking and supports Intel XMP profiles for performance tuning.
Expansion Slots
  • - 1x PCIe 5.0 x16 slot (direct from CPU).
  • - 1x PCIe 4.0 x16 slot.
  • - 2x PCIe 3.0 x1 slots.
Storage
  • - 4x M.2 Gen4 x4 NVMe slots (64 Gbps each), with M.2 Shield Frozr for thermal protection.
  • - 6x SATA 6 Gbps ports supporting RAID 0, 1, 5, and 10.
Graphics OutputsHDMI 2.1 and DisplayPort 1.4 supporting up to 4K at 60Hz via integrated GPU (requires compatible CPU).
USB Ports
Rear panel includes
  • - 1x USB 3.2 Gen 2x2 (20Gbps) Type-C,
  • - 2x USB 3.2 Gen 2 (10Gbps) Type-A and Type-C,
  • - 6x USB 3.2 Gen 1 (5Gbps) Type-A,
  • - 8x USB 2.0 ports.
  • - Internal headers support additional USB ports including front panel connections.
Networking
  • - Intel 2.5 Gigabit Ethernet LAN.
  • - Intel Wi-Fi 6E supporting 2.4GHz, 5GHz, and 6GHz bands.
  • - Bluetooth 5.3.
AudioRealtek ALC897 codec providing 7.1-channel high-definition audio enhanced with Audio Boost technology.
Power and Cooling
  • - 14+1+1 Duet Rail Power System with 55A DrMOS for stable CPU power.
  • - Dual 8-pin CPU power connectors.
  • - Extended heatsinks on VRM and M.2 slots.
  • - Frozr AI Cooling which automatically controls fan speeds.
Additional Features
  • - Core Boost technology for optimized power delivery.
  • - Memory Boost to enhance RAM performance and stability.
  • - Steel Armor reinforcement on PCIe slots for durability and EMI protection.
  • - 4 EZ Debug LEDs for easy troubleshooting.
  • - RGB and addressable RGB LED headers for customizable lighting.
  • - TPM 2.0 header for security module support.
Internal ConnectorsATX power, CPU power, CPU fan, pump fan, multiple system fan headers, chassis intrusion, front audio, Thunderbolt connectors, tuning controller connector, USB headers, RGB headers.
Form FactorATX (243.84mm x 304.8mm).
Operating System SupportCompatible with Windows 10 and Windows 11 64-bit.
WarrantyTypically 1 year,
