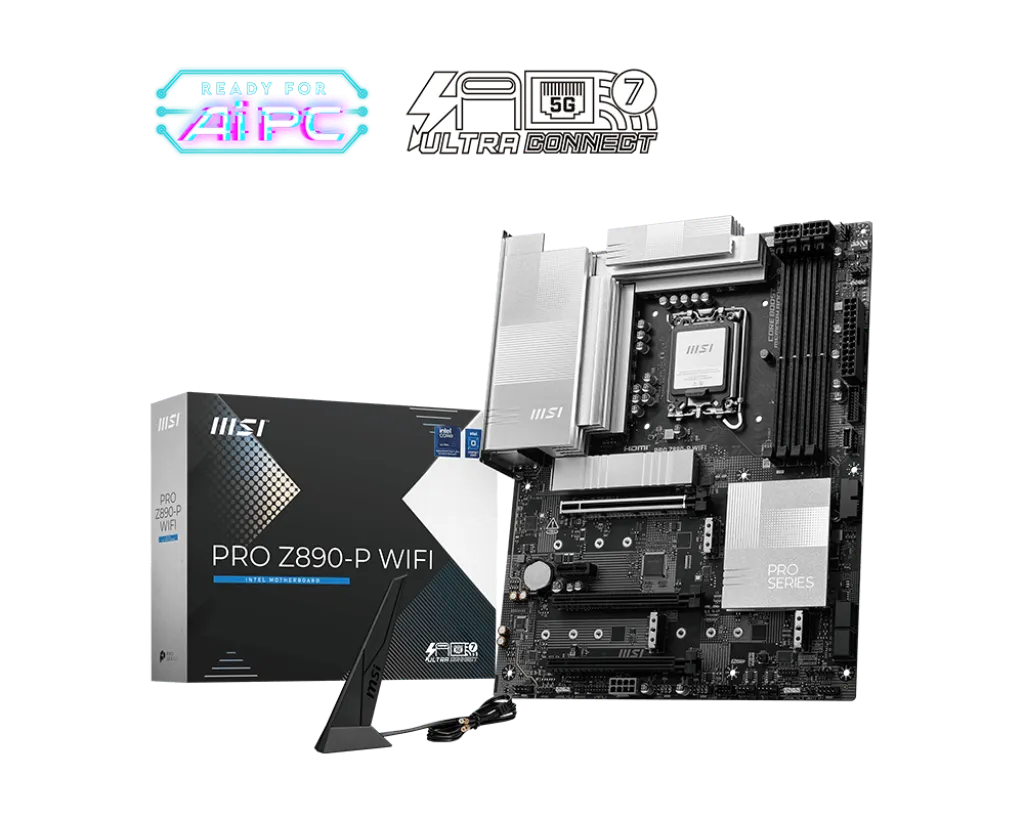

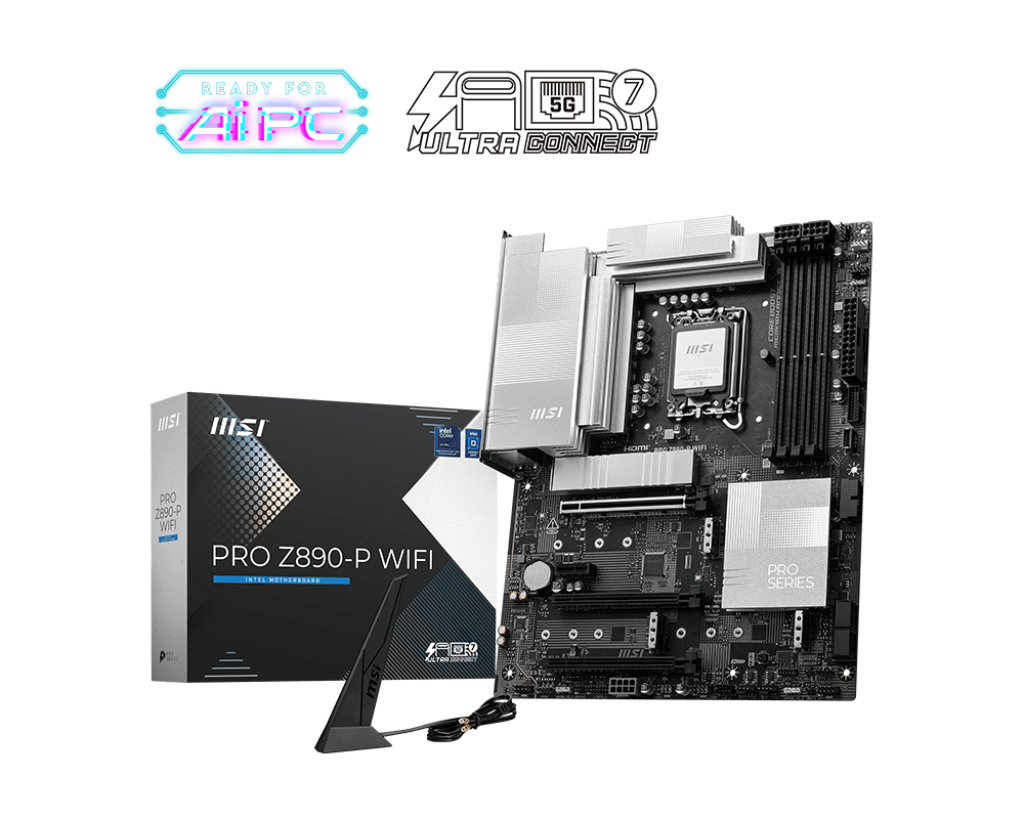

MSI Pro Z890-P Wi-Fi (DDR5)

Name: MSI Pro Z890-P Wi-Fi (DDR5)
Brand: MSI
SKU: MSI-57D3CAFE
Price: 45499 NPR
Availability: InStock

The MSI Pro Z890-P Wi-Fi (DDR5) is a top-tier ATX motherboard for Intel Core Ultra Processors with 4 DDR5 slots (up to 256GB, 9200+ MT/s OC), strong power phases, 4 PCIe slots including PCIe 5.0, 4 M.2 slots, HDMI 2.1, DisplayPort 1.4, Thunderbolt 4, Wi-Fi 7, Bluetooth 5.4, 5 Gbps LAN, high-quality 7.1 audio, advanced cooling, USB 3.2 and Thunderbolt ports, TPM, RGB lighting, and Windows 11 support—ideal for gamers, creators, and pros.

₨. 45,499

Specifications

CPU Support	Intel Core Ultra Processors (Series 2) with LGA 1851 socket.
Chipset	Intel Z890.
Memory
- 4 DDR5 UDIMM slots, supporting up to 256GB total. - DDR5 speeds 9200 to 6400 MT/s (overclocked), with official JEDEC 6400 to 4800 MT/s support. - Supports Intel XMP 3.0, dual-channel, non-ECC unbuffered memory.
Expansion Slots
- 1x PCIe 5.0 x16 slot (from CPU). - 3x PCIe 4.0 slots (two x16 lanes at x4 speed, one x1 lane).
Storage
4x M.2 slots
- 1x PCIe 5.0 x4 (M.2_1) - 1x PCIe 4.0 x4 (M.2_2) - 1x PCIe 4.0 x4 (M.2_3) - 1x PCIe 4.0 x4/SATA (M.2_4) - 4 SATA 6 Gbps ports. - RAID 0, 1, 5, 10 support for SATA and M.2 NVMe drives.
Graphics Outputs
- 1x HDMI 2.1 (up to 4K 60Hz). - 1x DisplayPort 1.4 (up to 4K 60Hz). - 1x Thunderbolt 4 USB-C port supporting DisplayPort 1.4 over USB-C (max 8K 60Hz or 4K 120Hz). - Requires CPU with integrated graphics.
USB Ports
Rear	Thunderbolt 4 USB-C (40Gbps), USB 3.2 Gen 2 Type-C, multiple USB 3.2 Gen 1/2 and USB 2.0 ports. Front/internal headers support USB 3.2 Gen 1, Gen 2, USB 2.0.
Networking
- Realtek 8126 5 Gbps Ethernet LAN. - Intel Wi-Fi 7 (320 MHz wide channel, up to 5.8 Gbps). - Bluetooth 5.4.
Audio	Realtek ALC897 codec for 7.1-channel HD audio with Audio Boost enhancement.
Power Delivery & Cooling
- 14+1+1+1 Duet Rail power system with 55A DrMOS. - Dual 8-pin CPU power connectors. - Extended heatsinks, MOSFET and choke thermal pads rated for 7 W/mK. - EZ M.2 Shield Frozr II for M.2 slot cooling. - EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna for easy DIY installation.
Additional Features
- 4 EZ Debug LEDs. - TPM 2.0 header. - RGB and Addressable RGB headers.
Form Factor	ATX (304.8 mm x 243.8 mm).
OS Support	Windows 11 64-bit.
