MSI Pro Z890-S Wi-Fi (DDR5)

Name: MSI Pro Z890-S Wi-Fi (DDR5)
Brand: MSI
SKU: MSI-C02AF44F
Price: 44499 NPR
Availability: InStock

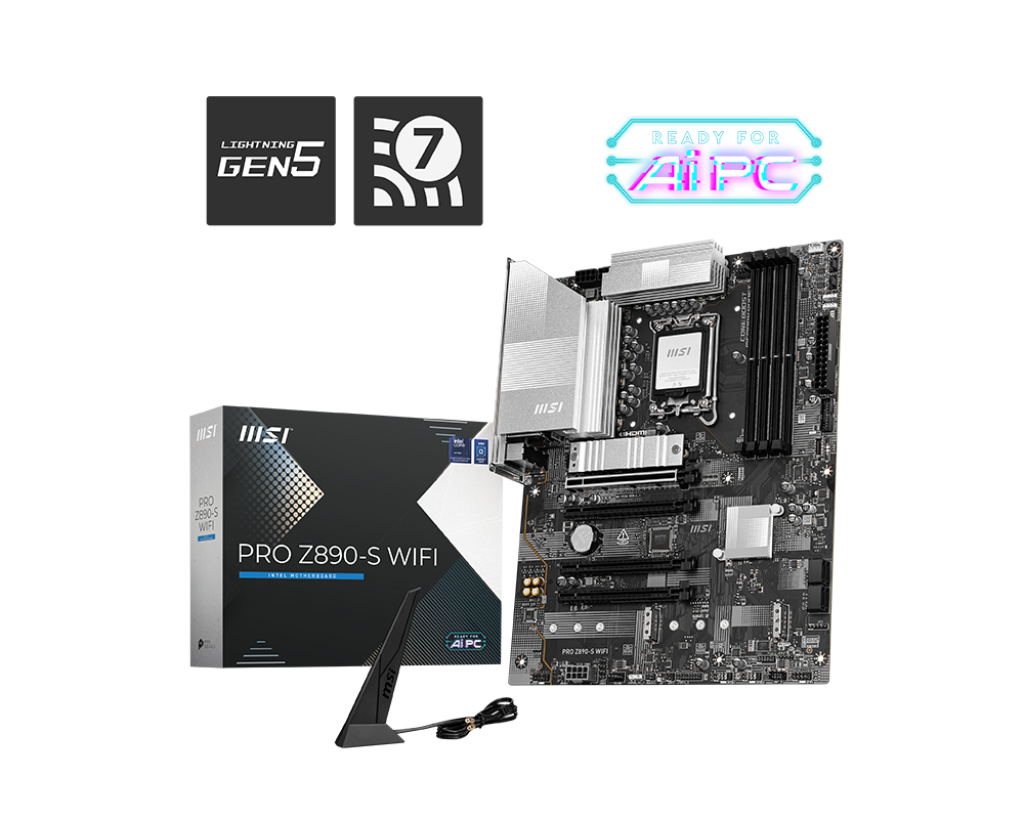

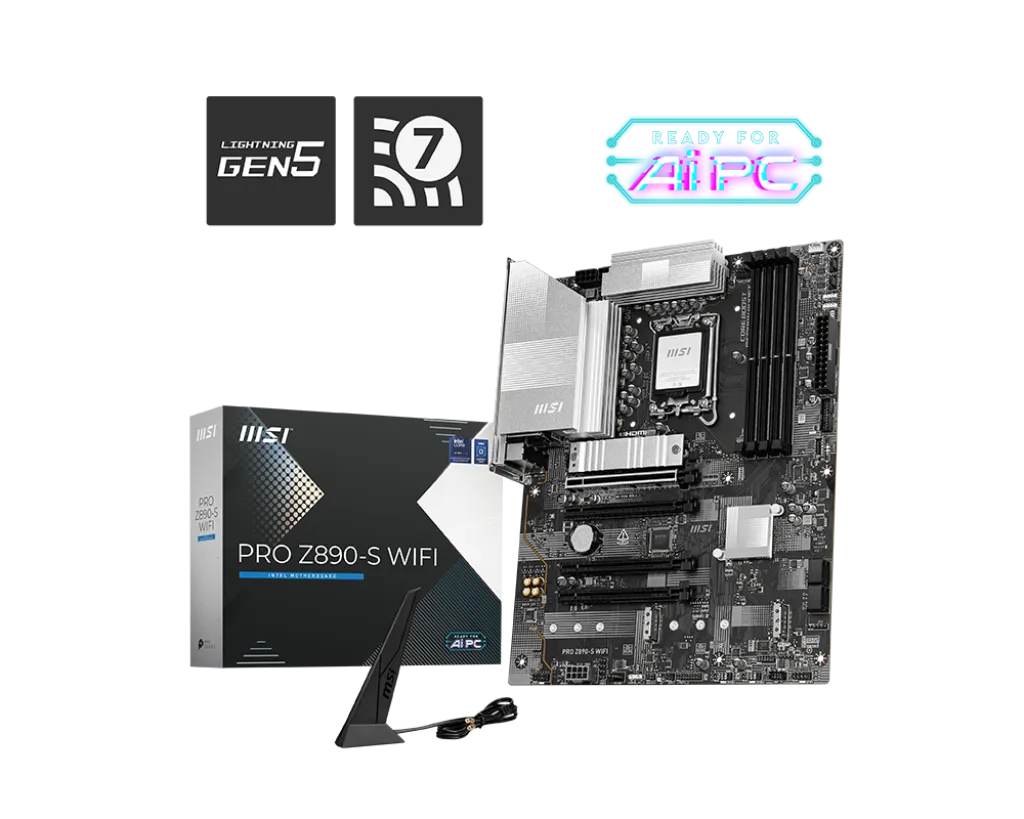

The MSI Pro Z890-S Wi-Fi (DDR5) is a high-end ATX motherboard for Intel Core Ultra Processors (LGA 1851) with 4 DDR5 slots (up to 256GB, 8800+ MT/s OC), 4 PCIe x16 slots including PCIe 5.0, 3 M.2 slots (PCIe Gen5/Gen4), Thunderbolt 4 USB-C, HDMI 2.1, DisplayPort 1.4, Intel 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, Realtek 7.1-channel audio with Audio Boost, strong power and cooling, and Windows 11 support. It’s built for creators, professionals, and gamers needing top performance and advanced connectivity.

₨. 44,499

Specifications

CPU Support	Intel Core Ultra Processors (Series 2) using LGA 1851 socket, including Intel Core Ultra Arrow Lake-S processors optimized for AI.
Chipset	Intel Z890.
Memory
- 4 DDR5 UDIMM slots supporting up to 256GB (64GB per slot). - DDR5 memory speeds up to 8800+ MT/s (overclocked). - Dual-channel architecture with Intel XMP 3.0 support.
Expansion Slots
- 1x PCIe 5.0 x16 slot from CPU. - 2x PCIe 4.0 x16 slots (x4 lanes each). - 1x PCIe 3.0 x16 slot (x1 lane).
Storage
3 M.2 slots
- 1x PCIe 5.0 x4 (M.2_1), - 2x PCIe 4.0 x4 (M.2_2, M.2_3). - 4 SATA 6 Gbps ports. - RAID support for 0, 1, 5, and 10 on SATA devices.
Graphics Outputs
- 1x HDMI 2.1 port (4K @ 60Hz). - 1x DisplayPort 1.4 (4K @ 60Hz). - 1x Thunderbolt 4 USB-C port supporting 40Gbps, 8K @ 60Hz, delivering 15W power. - Requires compatible CPU with integrated graphics.
USB Ports
- Rear panel includes 1 Thunderbolt 4/USB-C, 1 USB 3.2 Type-C, 6 USB 3.0, USB 2.0 ports. - Internal headers include USB 3.2 Gen1, USB 3.2 Gen2 Type-C, and USB 2.0.
Networking
- Intel 2.5 Gbps LAN (Realtek RTL8125D). - Wi-Fi 7 with 320MHz channel for up to 5.8 Gbps speeds. - Bluetooth 5.4.
Audio	Realtek ALC897 codec with 7.1-channel high-definition audio and Audio Boost technology for enhanced sound quality.
Power & Cooling
- 12+1+1+1 Duet Rail Power System with robust MOSFETs. - Dual 8-pin CPU power connectors. - Extended heatsinks with 7 W/mK thermal pads. - M.2 Shield Frozr II and Frozr AI Cooling for thermal management.
Additional Features
- EZ DIY features like EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, and pre-installed I/O shield. - 4 EZ Debug LEDs for troubleshooting. - RGB and Addressable RGB headers. - TPM header support. - Hidden motherboard connectors on the back (compatible with certain cases only).
Form Factor	ATX (304.8 mm x 243.84 mm).
Operating System	Windows 11 64-bit support.
