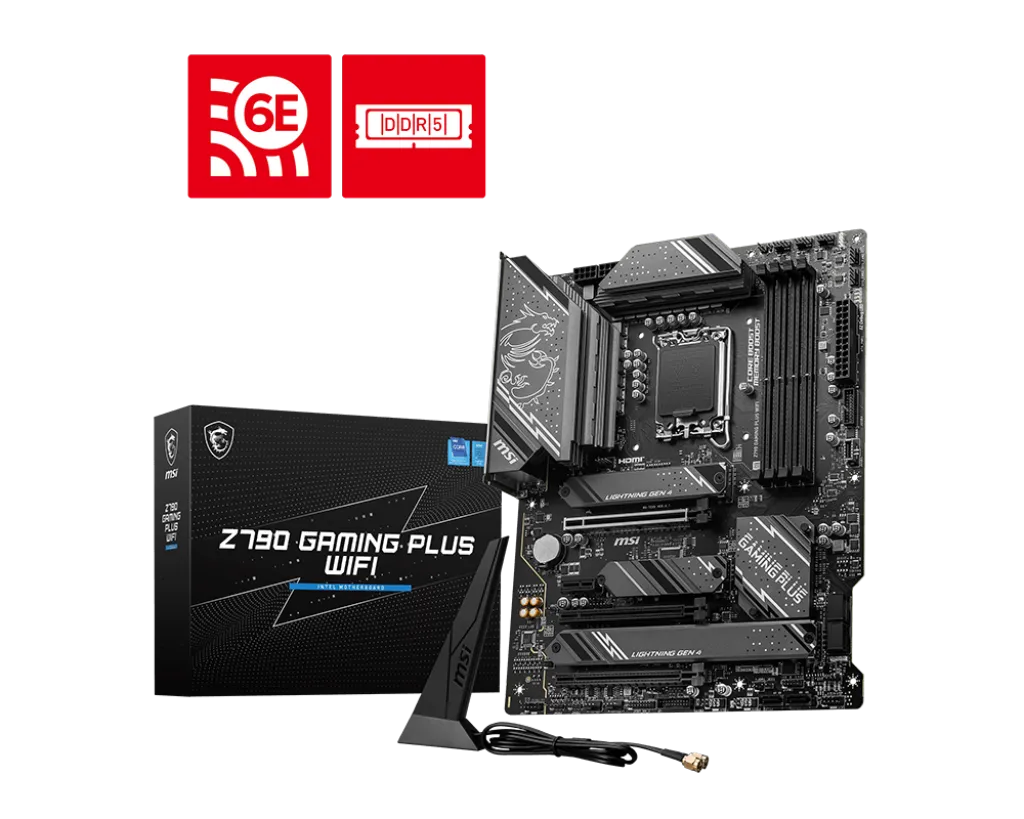

MSI Z790 Gaming Plus Wi-Fi (DDR5)

Name: MSI Z790 Gaming Plus Wi-Fi (DDR5)
Brand: MSI
SKU: MSI-28BC1960
Price: 39499 NPR
Availability: InStock

MSI Z790 Gaming Plus Wi-Fi (DDR5) is an ATX motherboard for Intel 12th-14th Gen CPUs with 4 DDR5 slots (up to 256GB), PCIe 5.0 x16 and PCIe 4.0 x16 slots, 4 M.2 Gen4 NVMe slots, 6 SATA ports, HDMI 2.1 and DisplayPort 1.4, 2.5Gb Ethernet, Wi-Fi 6E with Bluetooth 5.3, 7.1-channel HD audio, strong power delivery, advanced cooling, and a 1-year warranty. It’s designed for gamers and enthusiasts needing high performance and modern features.

₨. 39,499

Specifications

CPU Support	Compatible with Intel Core 14th, 13th, and 12th Gen processors, as well as Pentium Gold and Celeron processors using the LGA 1700 socket.
Chipset	Intel Z790.
Memory
- 4 DDR5 DIMM slots, dual-channel architecture. - Supports up to 192GB (and some sources mention up to 256GB). - Memory speeds up to DDR5-7200+ MHz (overclocked). - Supports Intel XMP 3.0 profiles for memory overclocking.
Expansion Slots
- 1x PCIe 5.0 x16 slot (CPU lane). - 1x PCIe 4.0 x16 slot. - 2x PCIe 3.0 x1 slots.
Storage
- 4x M.2 Gen4 x4 NVMe slots (64 Gbps each), with M.2 Shield Frozr thermal protection to prevent throttling. - 6x SATA 6 Gbps ports. - RAID support for 0, 1, 5, and 10 on SATA.
Graphics Outputs
- 1x HDMI 2.1 port supporting 4K @ 60Hz with HDR. - 1x DisplayPort 1.4 supporting 4K @ 60Hz. - Requires integrated GPU in compatible processors.
USB Ports
Rear panel
- 1x USB 3.2 Gen 2x2 (20 Gbps) Type-C. - 2x USB 3.2 Gen 2 (10 Gbps) Type-C and Type-A. - 6x USB 3.2 Gen 1 (5 Gbps) Type-A. - 8x USB 2.0 ports.
Networking
- Intel 2.5 Gigabit Ethernet LAN. - Intel Wi-Fi 6E (2.4 GHz, 5 GHz, 6 GHz bands). - Bluetooth 5.3.
Audio	8-Channel (7.1) HD audio via Realtek codec with Audio Boost technology for enhanced sound quality.
Power & Cooling
- 14+1+1 Duet Rail Power System with 55A DrMOS. - Dual 8-pin CPU power connectors. - Extended heatsinks for VRMs and M.2 slots. - Premium MOSFET thermal pads rated 7W/mK. - Frozr AI Cooling for automatic fan speed control.
Additional Features
- Core Boost for optimized power delivery. - Memory Boost to enhance RAM stability and performance. - Steel Armor on PCIe slots for durability and EMI protection. - 4 EZ Debug LEDs for troubleshooting. - Support for TPM 2.0 security modules. - RGB and Addressable RGB LED headers for lighting customization.
Form Factor	ATX, 243.84mm x 304.8mm.
Operating System Support	Windows 10 and Windows 11 (64-bit).
Warranty	1 Year
