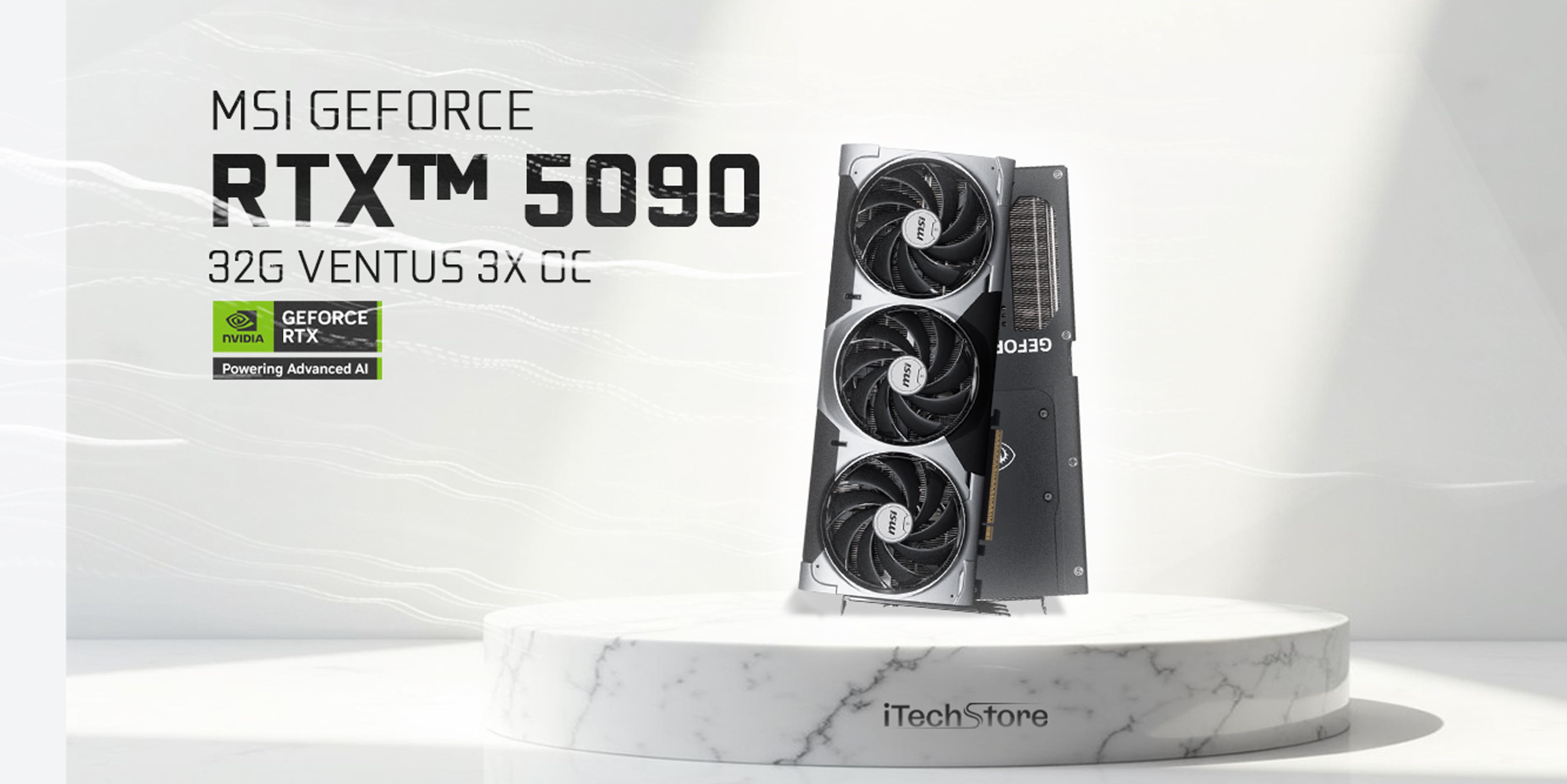

The MSI GeForce RTX™ 5090 32G VENTUS 3X OC is a powerful graphics card made for gamers and creators who need top performance. It uses NVIDIA's latest Blackwell technology and supports DLSS 4, which greatly enhances gaming and creative tasks.
Key Features and Specifications
GPU and Architecture: The NVIDIA GeForce RTX 5090 is equipped with the advanced Blackwell architecture, which incorporates 21,760 CUDA cores. This design enables exceptionally high levels of parallel processing power, making it an ideal choice for demanding computational tasks.
Memory: The graphics card is equipped with 32GB of ultra-fast GDDR7 VRAM, operating at a speed of 28 Gbps on a 512-bit memory bus. This configuration facilitates substantial data throughput, making it suitable for both 4K gaming and professional applications.
Core Clocks: The highest clock speeds can reach 2452 MHz using MSI Center. In gaming and silent modes, boost speeds are around 2437 MHz.
Cooling: The MSI graphics card is equipped with the advanced TORX Fan 5.0 thermal solution, which utilizes a triple-fan design. This configuration features fan blades that are interconnected by ring arcs, thereby enhancing airflow and cooling efficiency. Such a design ensures reliable performance even under significant operational loads.
Power and Connectivity: This component requires a robust 1000W power supply and is equipped with a single 16-pin power connector. The rated power consumption stands at 575W.
Display Outputs: This system supports connectivity for up to four displays, featuring three DisplayPort 2.1b ports and one HDMI 2.1b port. It is capable of delivering resolutions up to 8K at 120Hz using Display Stream Compression (DSC), as well as 4K at 480Hz. Additionally, it supports High Dynamic Range (HDR) and Variable Refresh Rate (VRR) technologies, ensuring a high-quality visual experience.
Physical Dimensions: This card measures an impressive 325 x 139 x 67 mm and weighs approximately 1875 grams, making it a robust dual- to triple-slot option that necessitates ample case space.
Additional Features: You can choose between performance mode and silent mode with the dual BIOS. The metal backplate adds durability, while the thickened copper layers and thermal padding help dissipate heat effectively. An adjustable support bracket stops sagging.
Performance and Use Cases
The RTX 5090 32G VENTUS 3X OC performs well for both gaming and professional tasks. Gamers can enjoy high frame rates at 1440p, 4K, and higher resolutions, thanks to ray tracing and AI features like DLSS 4. Content creators will find its large VRAM and CUDA cores helpful for 3D rendering, animation, and complex simulations in programs like Autodesk 3ds Max, Maya, Blender, and others.
A user review says that this card performs well for gaming and streaming. It notes that slightly reducing the voltage can improve efficiency and frames per second (FPS), while also lowering power consumption and heat.
Conclusion
The MSI GeForce RTX™ 5090 32G VENTUS 3X OC is a top-of-the-line graphics card. It features the latest NVIDIA technology, a large memory capacity, and advanced cooling systems. This card is perfect for gamers, enthusiasts, and professionals who want outstanding performance for demanding tasks in 2025 and beyond.
