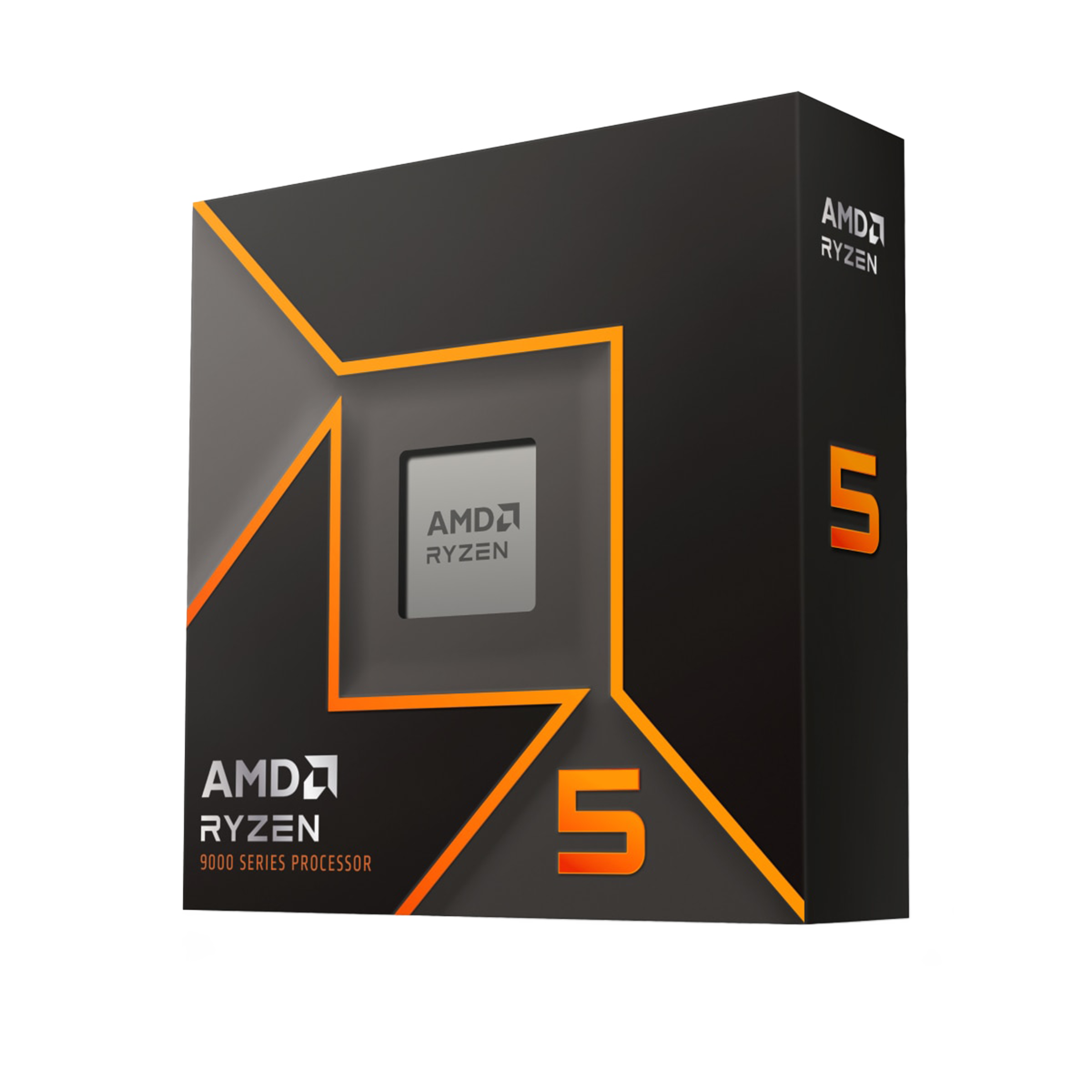

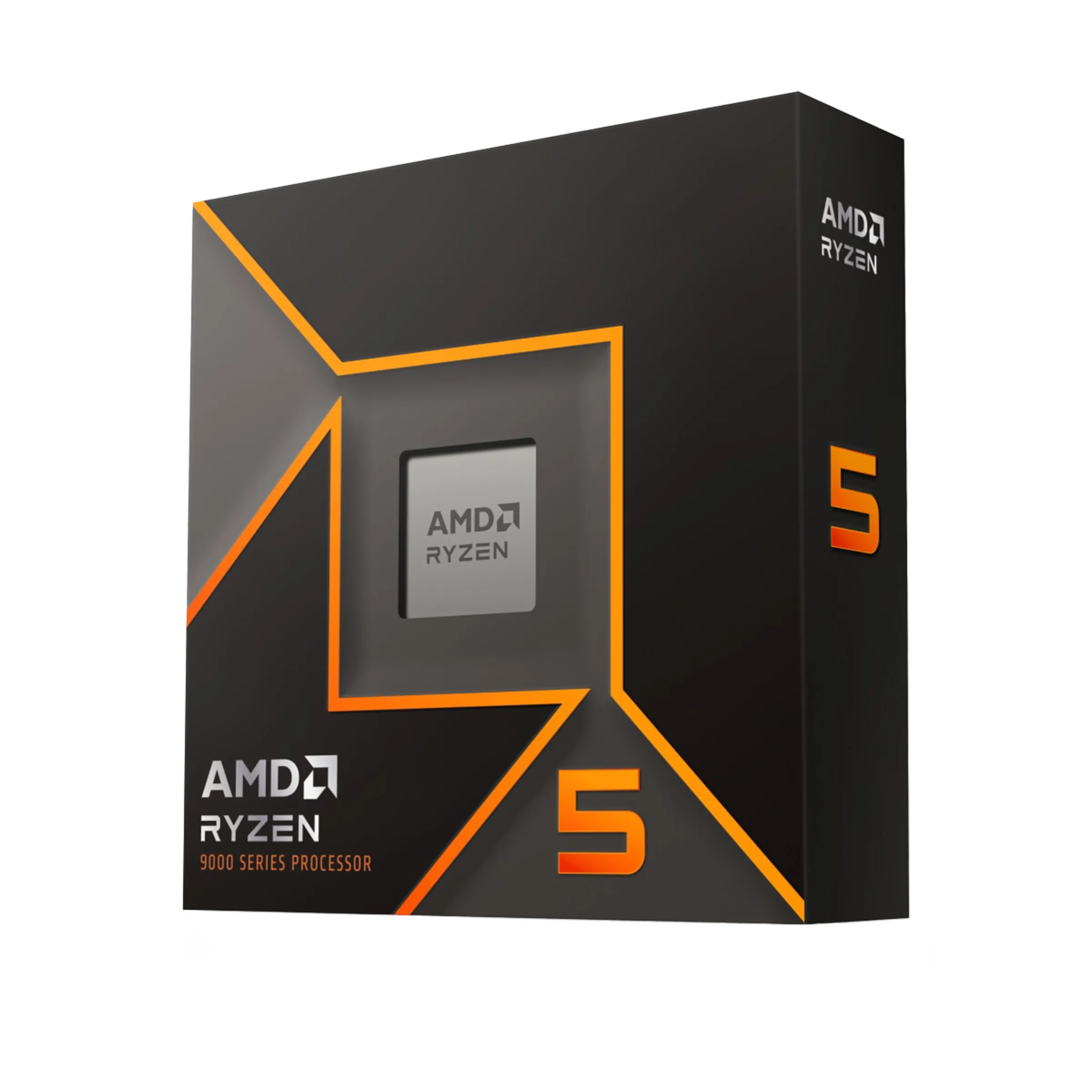

AMD Ryzen 5 9600X Desktop Processer
The AMD Ryzen 5 9600X is a 6-core, 12-thread Zen 5 CPU with up to 5.4 GHz boost, 32 MB L3 cache, 65W TDP, DDR5-5600 support, PCIe 5.0, integrated Radeon graphics, and unlocked for overclocking.
₨. 34,499
1
Specifications
Specifications
| Cores / Threads | 6 cores / 12 threads (Simultaneous Multithreading) |
| Base Clock | 3.9 GHz |
| Max Boost Clock | Up to 5.4 GHz |
| Cache | |
| L1 Cache | 80 KB per core (480 KB total) |
| L2 Cache | 1 MB per core (6 MB total) |
| L3 Cache | 32 MB shared |
| Architecture | Zen 5 (Granite Ridge) |
| Process | 4 nm (TSMC) |
| TDP | 65 W (Thermal Design Power) with possible boost power (PL2) up to 142 W |
| Thermal Limit | 95 °C maximum junction temperature |
| Socket | AM5 (FC-LGA1718) |
| Memory Support | DDR5 up to 5600 MT/s, dual-channel, ECC supported (with compatible motherboard) |
| PCIe | PCIe Gen 5.0, 28 lanes total (24 lanes from CPU) |
| Integrated Graphics | AMD Radeon Graphics (Radeon 610M) with up to 2200 MHz frequency |
| Unlocked | Yes, supports overclocking |
| Supported Chipsets | X870E, X870, B850, B840, X670E, X670, B650E, B650, A620 |
| Instruction Sets & Features | AVX, AVX2, AVX-512, FMA3, SSE 4.1/4.2, Precision Boost 2, AMD EXPO memory profile support, AMD-V virtualization |
| Package | No stock cooler included (WOF - Without Fan) |
