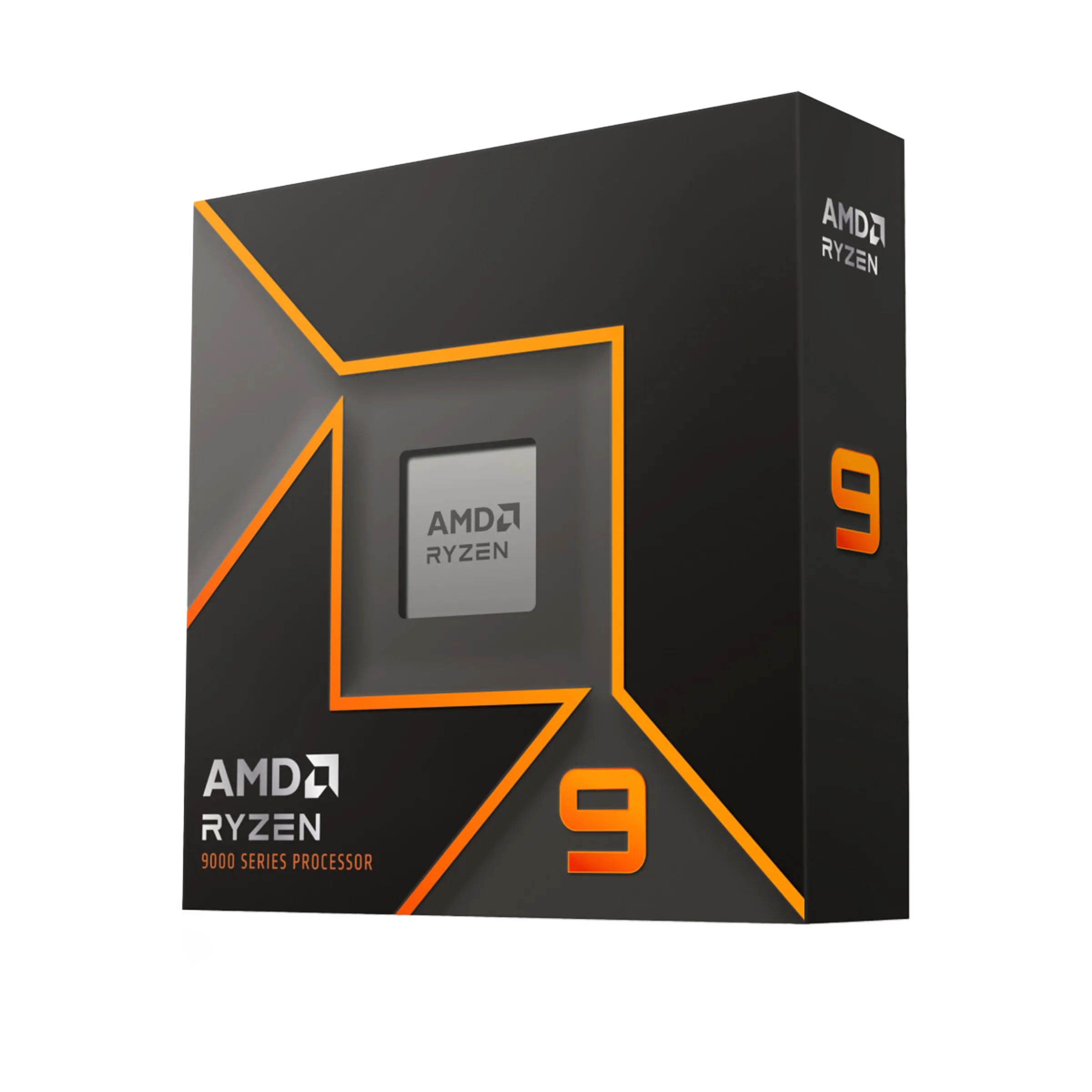

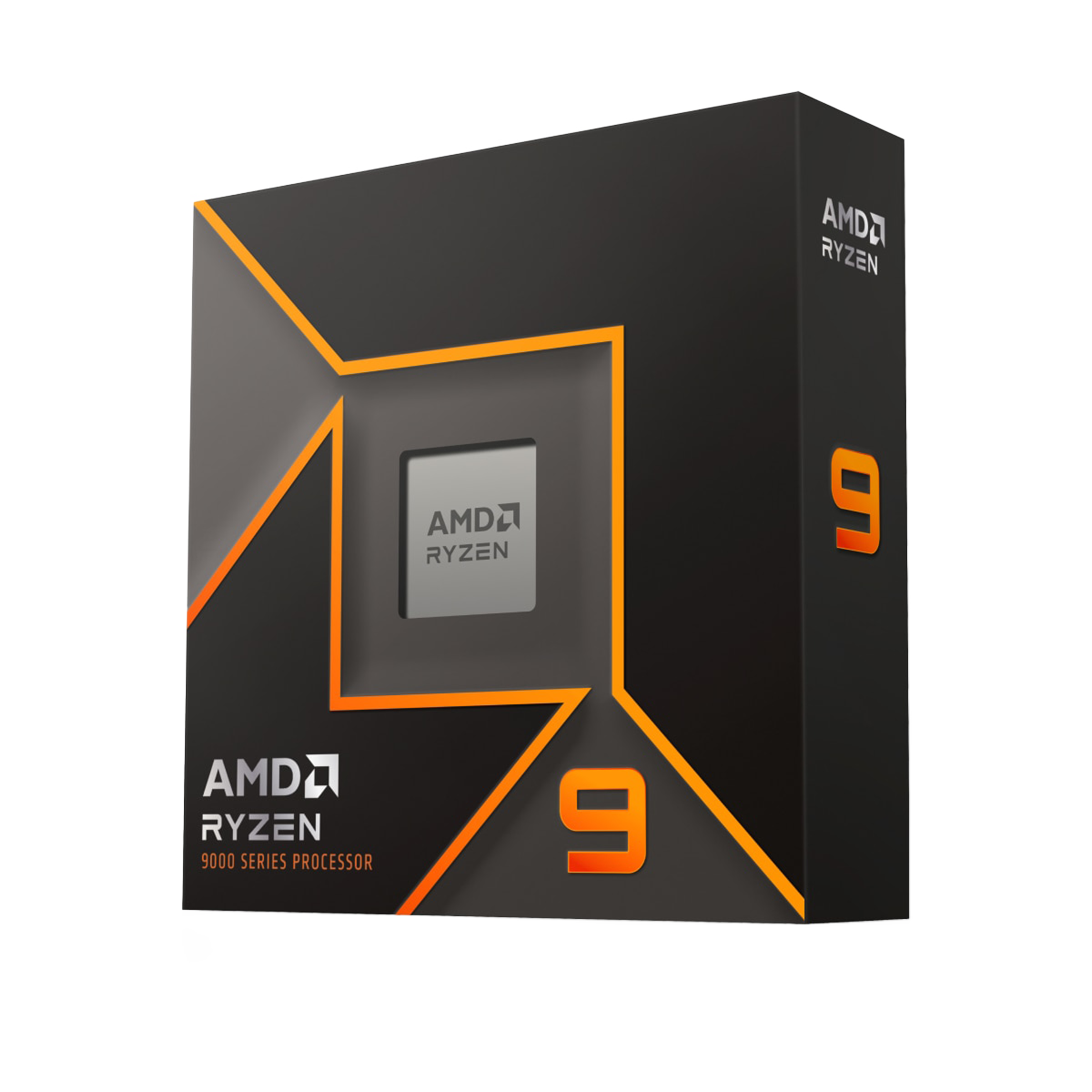

AMD Ryzen 9 9950X Desktop Processor
The AMD Ryzen 9 9950X is a 16-core, 32-thread high-end desktop CPU with up to 5.7 GHz boost, 64 MB L3 cache, 170W TDP, DDR5 support, integrated Radeon graphics, and unlocked for overclocking. It’s ideal for gaming and content creation.
₨. 1,04,499
1
Specifications
Specifications
| Specifications | |
| Architecture | Zen 5 (Granite Ridge) |
| Cores / Threads | 16 cores / 32 threads (Simultaneous Multithreading) |
| Base Clock | 4.3 GHz |
| Max Boost Clock | Up to 5.7 GHz |
| Cache |
|
| Thermal Design Power (TDP) | 170 W (PL1), with boost power (PL2) up to 230 W |
| Process Technology | 4 nm for CPU cores (TSMC), 6 nm for I/O die |
| Socket | AM5 (FC-LGA1718) |
| Memory Support | DDR5-5600, dual-channel, up to 192 GB, ECC supported (with compatible motherboards) |
| PCI Express | PCIe 5.0 with 28 lanes total (16 lanes for GPU, 8 for NVMe storage, 4 for chipset) |
| Integrated Graphics | Radeon Graphics with up to 2200 MHz frequency |
| Unlocked Multiplier | Yes, supports overclocking |
| Thermal Limit (Tj Max) | 95 °C |
| Manufacturing Details | |
| CPU Die Size | ~2 x 70.6 mm² (dual CCD design) |
| Transistor Count | 16.63 billion CPU transistors |
| I/O Die Size | 122 mm² (3.4 billion transistors) |
| Package | FC-LGA1718 |
| Warranty | 3 years (manufacturer warranty) |
