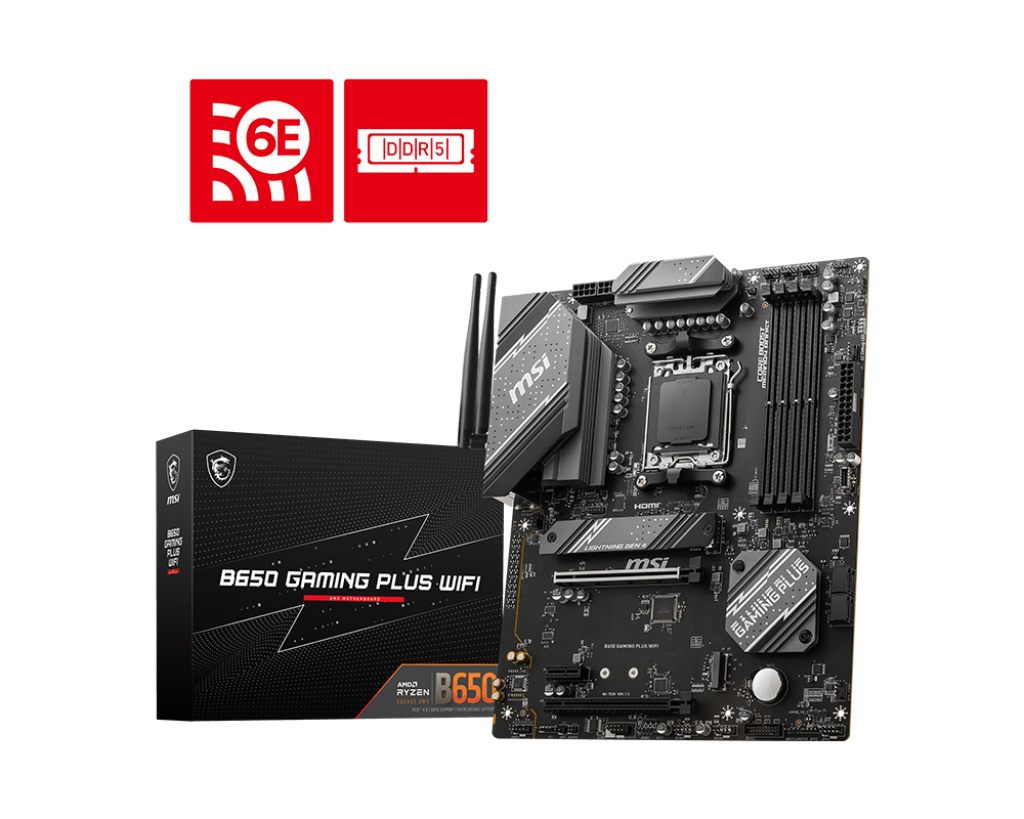

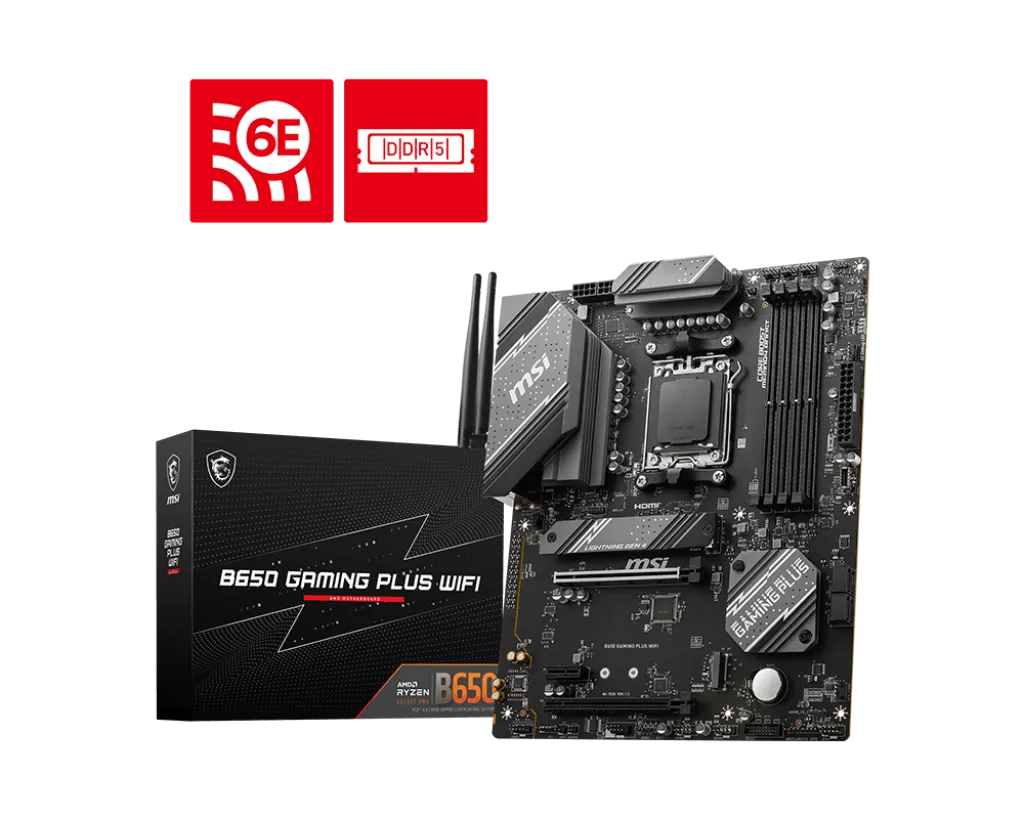

MSI B650 Gaming Plus WiFi DDR5

The MSI B650 Gaming Plus WiFi DDR5 is a solid mid-range ATX motherboard for AMD Ryzen 7000/8000/9000 CPUs. It supports fast DDR5 RAM, PCIe 4.0 storage, strong power delivery, Wi-Fi 6E, 2.5 GbE LAN, USB-C, RAID, and TPM 2.0—ideal for gaming and high-performance PCs.

₨. 29,499
1
Specifications
Specifications
CPU SupportAMD Ryzen 7000, 8000, and 9000 series desktop processors, AM5 socket.
ChipsetAMD B650.
Memory4 DDR5 DIMM slots, supporting up to 256GB maximum capacity; speeds up to DDR5 7200+ MHz (OC). Supports dual-channel memory architecture.
Expansion Slots
  • - 2 PCIe 4.0 x16 slots (one directly from CPU with x16 speed, another from chipset),
  • - 1 PCIe 3.0 x1 slot,
  • - Additional PCIe 4.0 x4 slot for high-speed devices.
Storage
  • - 2 M.2 PCIe 4.0 x4 slots (supporting devices up to 22110 size for one slot),
  • - 4 SATA 6Gbps ports,
  • - RAID support for SATA and M.2 NVMe storage (RAID 0, 1).
Networking
  • - Realtek RTL8125BG 2.5 Gigabit Ethernet LAN,
  • - Pre-installed AMD Wi-Fi 6E module supporting Bluetooth 5.3,
  • - MU-MIMO, 20/40/80 MHz bandwidth on 2.4GHz, 5GHz, and 6GHz bands.
USB Ports
  • - 1x USB 3.2 Gen 2x2 (20 Gbps) Type-C port,
  • - 4x USB 3.2 Gen 2 (10 Gbps, three Type-A, one Type-C),
  • - 6x USB 3.2 Gen 1 (5 Gbps, Type-A),
  • - 4x USB 2.0 ports.
AudioRealtek ALC897 7.1 channel HD Audio with Audio Boost for enhanced sound quality.
Display OutputsHDMI 2.1 and DisplayPort 1.4 supporting up to 4K at 60Hz using integrated graphics.
Power Design and Cooling
  • - 12+2+1 Duet Rail 60A Power System for stable power delivery,
  • - Dual 8-pin CPU power connectors,
  • - Extended heatsinks, MOSFET thermal pads with 7W/mK rating,
  • - M.2 Shield FROZR for M.2 SSD thermal management to prevent throttling.
Other Features
  • - TPM 2.0 header support,
  • - Multiple RGB LED headers (addressable RGB and standard RGB),
  • - Core Boost technology assuring stable CPU power,
  • - Debug LEDs for easier troubleshooting,
  • - Support for Windows 10 and 11 64-bit OS,
  • - High-quality 6-layer PCB with 2oz thickened copper.
Form FactorStandard ATX (243.84mm x 304.8mm).
