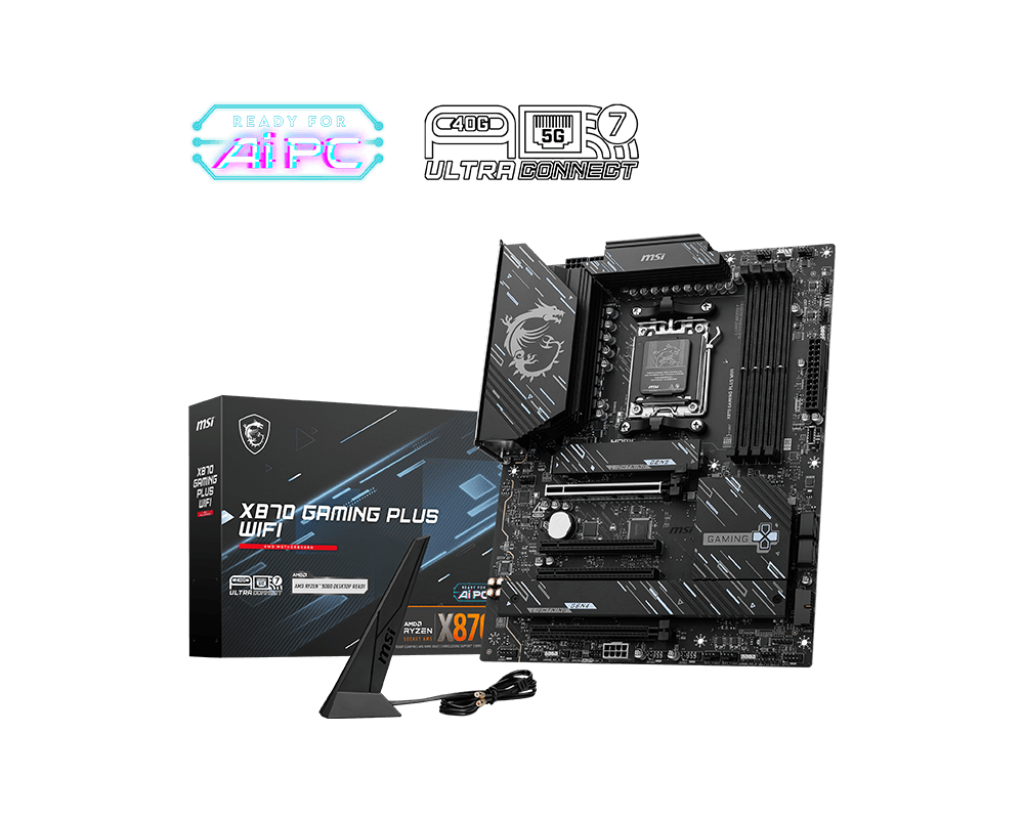

MSI X870 Gaming Plus WiFi DDR5

The MSI X870 Gaming Plus WiFi DDR5 is a high-end ATX motherboard with AMD X870 chipset for Ryzen 7000/8000/9000 CPUs. It supports up to 256GB DDR5 RAM (8200+ MT/s OC), PCIe 5.0 graphics, Lightning Gen 5 M.2 storage, 14+2+1 power phases, 5 GbE LAN, Wi-Fi 7, USB4, studio-grade audio, and advanced cooling—ideal for gamers and pros needing top performance and future-proofing.

₨. 49,499
1
Specifications
Specifications
CPU SupportAMD Ryzen 7000/8000/9000 series processors, AM5 socket.
ChipsetAMD X870.
Memory4 DDR5 UDIMM slots supporting up to 256GB maximum capacity; dual-channel architecture; memory speeds range from DDR5 4800 to over 8200 MT/s (OC), compatible with AMD EXPO and CUDIMM.
Power DeliveryRobust 14+2+1 Duet Rail power system with dual 8-pin CPU power connectors, Core Boost and Memory Boost technologies, and an 8-layer PCB with 2oz thickened copper and server-grade materials for stable and efficient power delivery.
Expansion Slots
  • - 1 PCIe Gen5 x16 slot (from CPU) for graphics,
Additional PCIe slots1 Gen4 x4, 2 Gen3 x1 slots.
Storage
3 M.2 slots with
  • - 1 PCIe Gen5 x4 M.2 slot (up to 128Gbps) with EZ M.2 Shield Frozr II for thermal management,
  • - 1 PCIe Gen4 x4 M.2 slot,
  • - 1 PCIe Gen4 x2 M.2 slot,
  • - 4 SATA 6Gbps ports supporting RAID 0, 1, and 5 (RAID 5 only on Ryzen 9000 CPUs).
NetworkingRealtek 8126VB 5 Gigabit Ethernet LAN, integrated Wi-Fi 7 with Bluetooth 5.4, MU-MIMO support for 2.4GHz, 5GHz, and 6GHz bands, and MSI EZ Antenna for better wireless reception.
USB Ports
Rear I/OUSB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 20Gbps Type-C, and USB 40Gbps USB4 Type-C ports.
Front panel headersUSB 2.0, USB 5Gbps Type-A, and USB 10Gbps Type-C.
AudioRealtek ALC897 7.1-channel HD audio with Audio Boost technology for studio-grade sound.
Display OutputsHDMI 2.1 supporting 4K at 60Hz and USB4 Type-C with DisplayPort 1.4 for integrated graphics.
Cooling SolutionsFrozr Guard system including extended heatsinks, high-thermal-conductivity MOSFET and choke thermal pads, EZ M.2 Shield Frozr II, and multiple fan headers for CPU, pump, and system fans.
Ease of Use & FeaturesEZ DIY features such as EZ M.2 Clip II for easy SSD installation, EZ PCIe Clip II for quick graphics card removal, pre-installed I/O shield, multiple RGB and ARGB headers, EZ Debug LEDs, clear CMOS and BIOS flashback buttons.
Internal ConnectorsStandard ATX power, multiple CPU and system fan headers, TPM header, RGB headers, USB headers, chassis intrusion, serial RS-232, and debug interfaces.
Operating System SupportWindows 11 64-bit.
Form FactorATX (243.84 mm x 304.8 mm).
