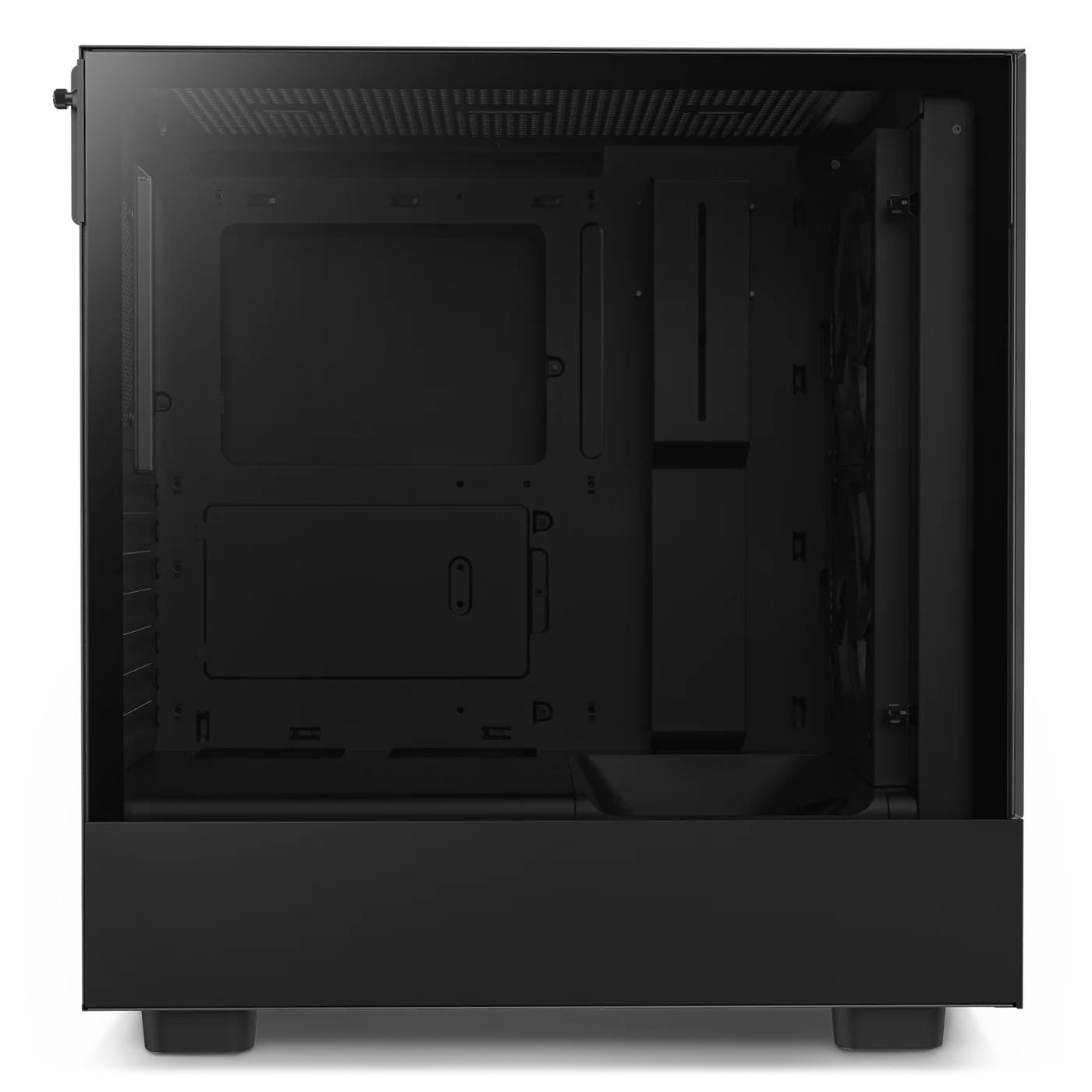

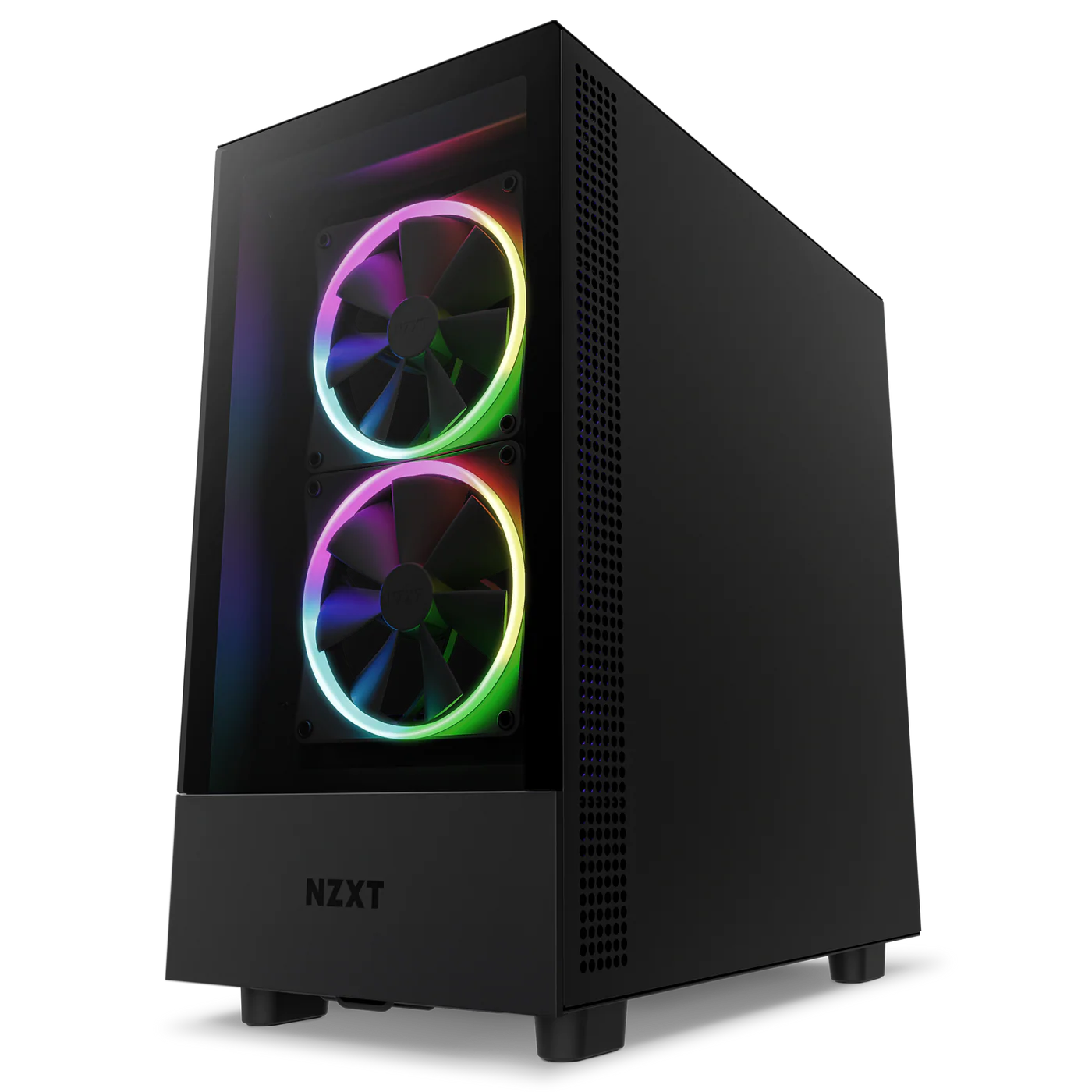

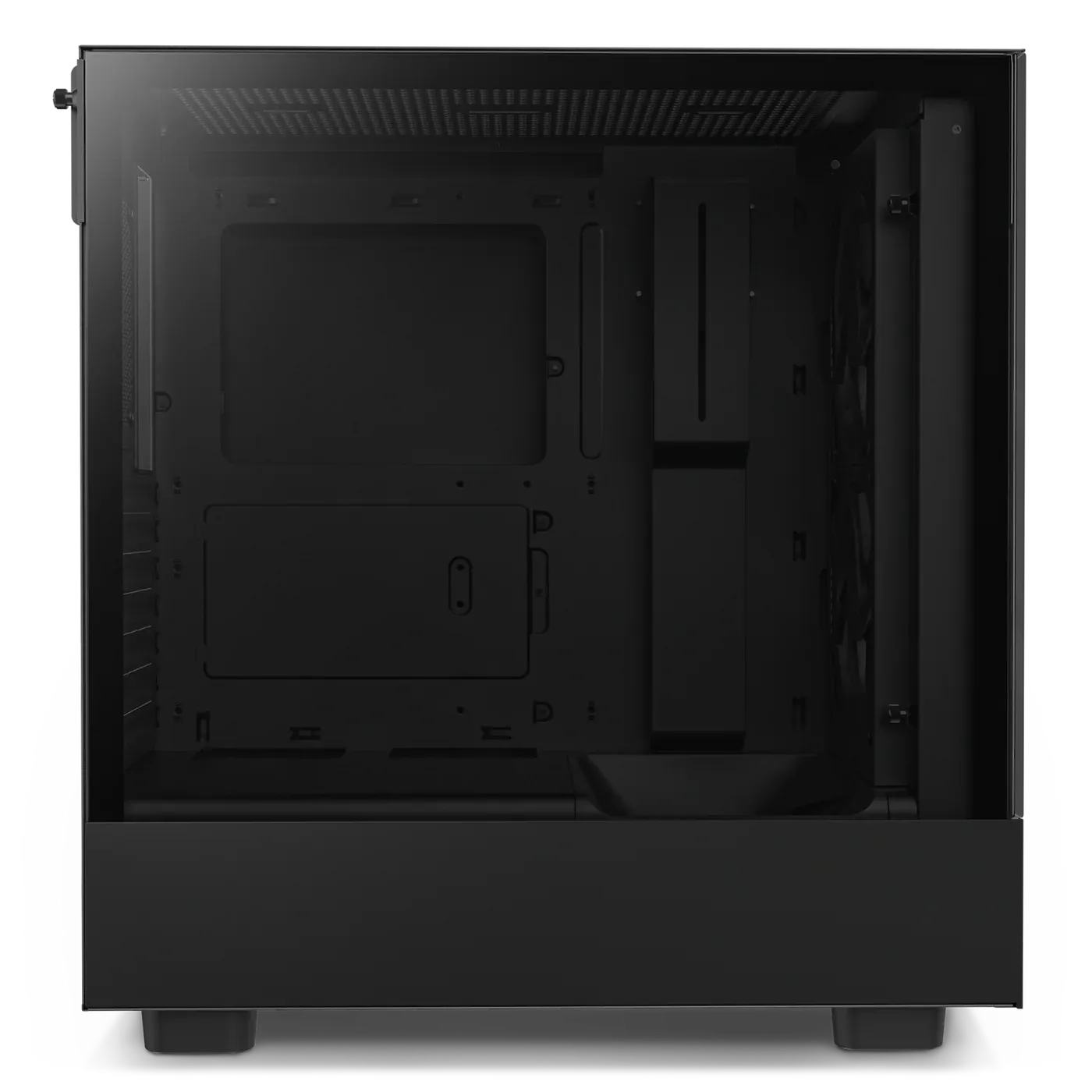

H510 Elite

The NZXT H510 Elite is a mid-tower PC case with tempered glass panels, built-in RGB fans, smart fan and lighting control, great cable management, and support for advanced cooling, ideal for clean and stylish builds.

Select Variant:
₨. 19,499
1
Specifications
Specifications
Dimensions460 × 210 × 428 mm (18.11 × 8.27 × 16.85 inches)
WeightApprox. 7.5 kg (16.5 lbs)
MaterialSGCC steel chassis with dark tinted tempered glass front and side panels
Motherboard SupportMini-ITX, Micro-ATX, ATX
GPU ClearanceUp to 381 mm (15 inches)
CPU Cooler Height ClearanceUp to 165 mm (6.5 inches)
Drive Bays2 × 3.5" and 2 × 2.5" internal bays, plus 1 extra 2.5" mount
Expansion Slots7 standard and 2 vertical slots for GPUs
Cooling and Fans
  • - Comes with 2 × 140mm Aer RGB 2 fans (500–1,500 RPM, 22–33 dBA, 30.39–91.19 CFM) in front
  • - 1 × 140mm Aer F140 fan at rear (approx. 1,000 ± 200 RPM, 28 dBA)
  • - Supports up to 2 × 120/140mm front fans, 1 × 120/140mm top fan, and 1 × 120mm rear fan
Radiator SupportFront up to 280mm, rear 120mm (no top radiator support)
Front I/O Ports
  • - 1 × USB 3.2 Gen 2 Type-C (up to 10 Gbps)
  • - 1 × USB 3.2 Gen 1 Type-A
  • - 1 × audio/mic combo jack
Smart Device V2
  • - Controls 3 fan channels (10W max each) and 2 RGB lighting channels
  • - Supports up to 4 HUE+ LED strips or 5 Aer RGB/RGB2 fans
Cable ManagementPatented cable routing bar, channels, PSU shroud, and additional cable tie points (19–23 mm clearance)
Other Features
  • - Two tinted tempered glass panels (front and side) for hardware showcase
  • - Removable fan/radiator mounting bracket for ease of installation
  • - Includes 1 integrated RGB LED strip
Warranty2 years
