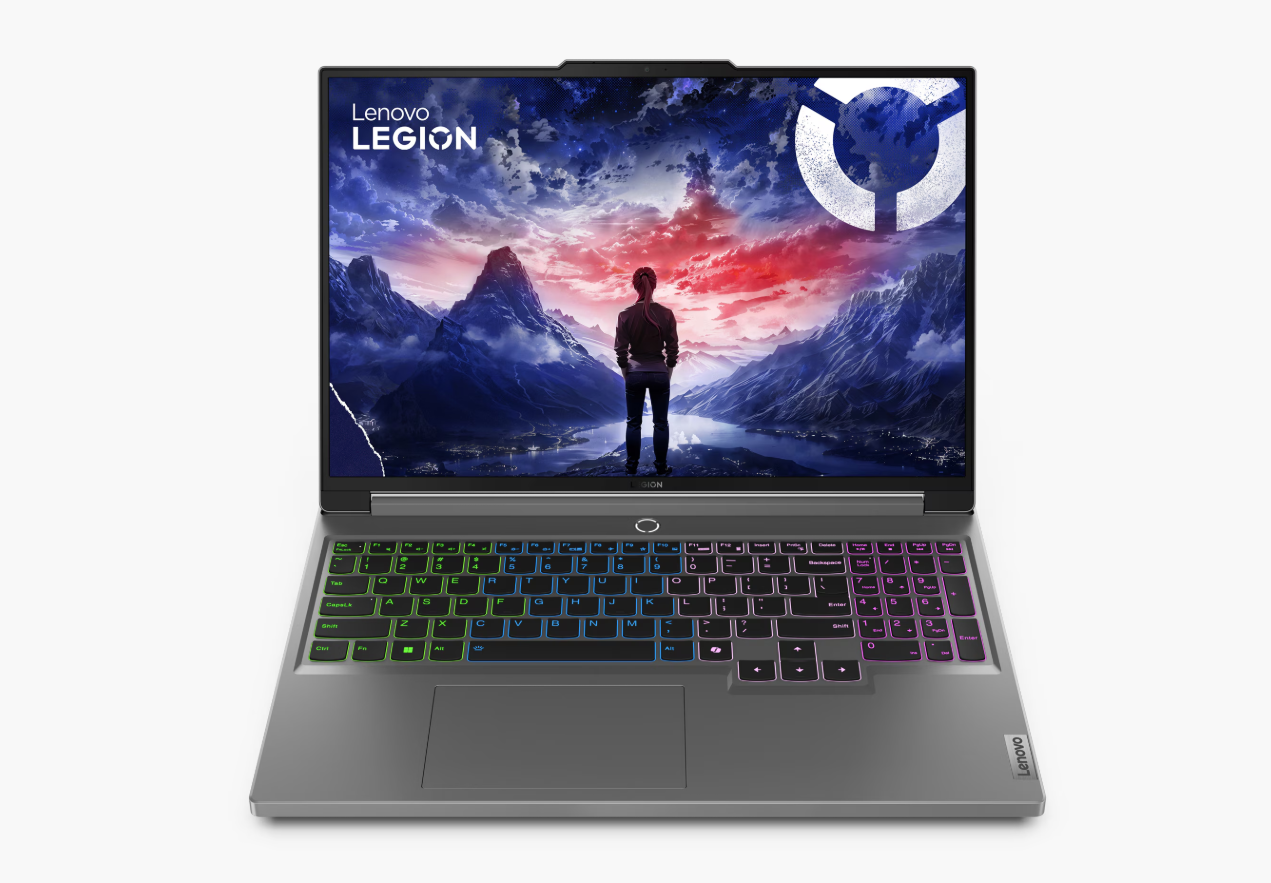

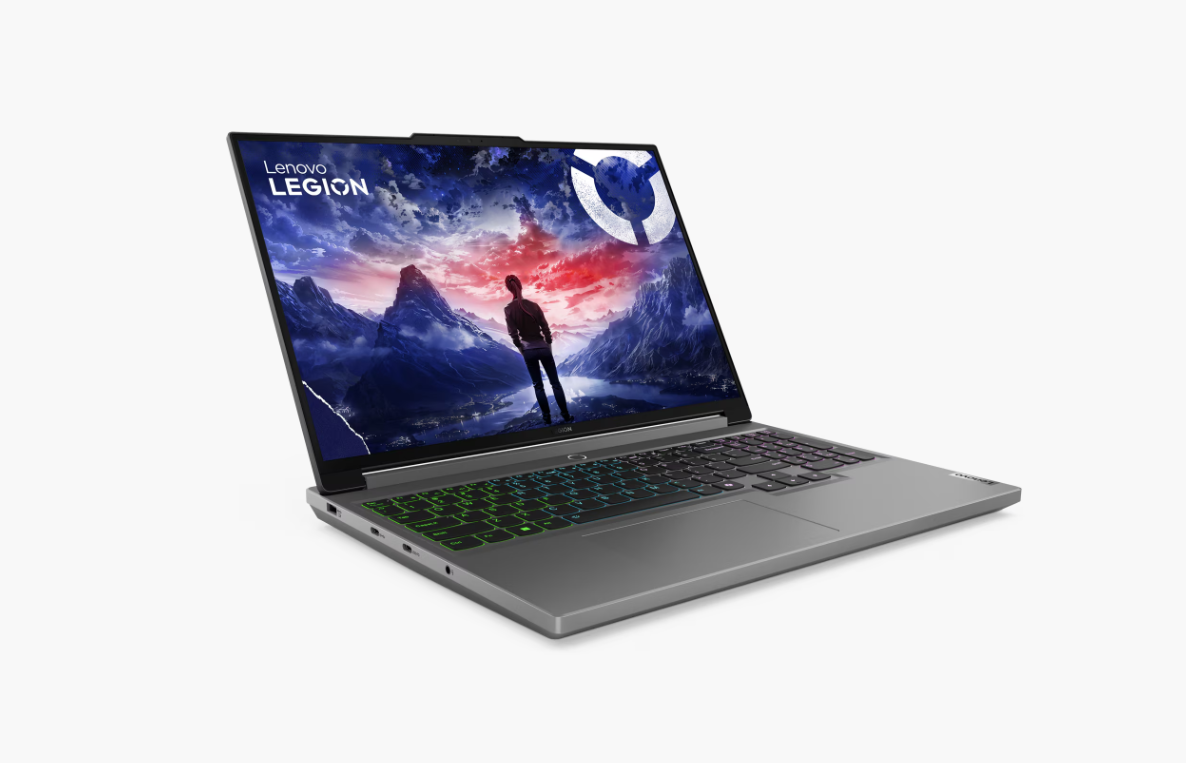

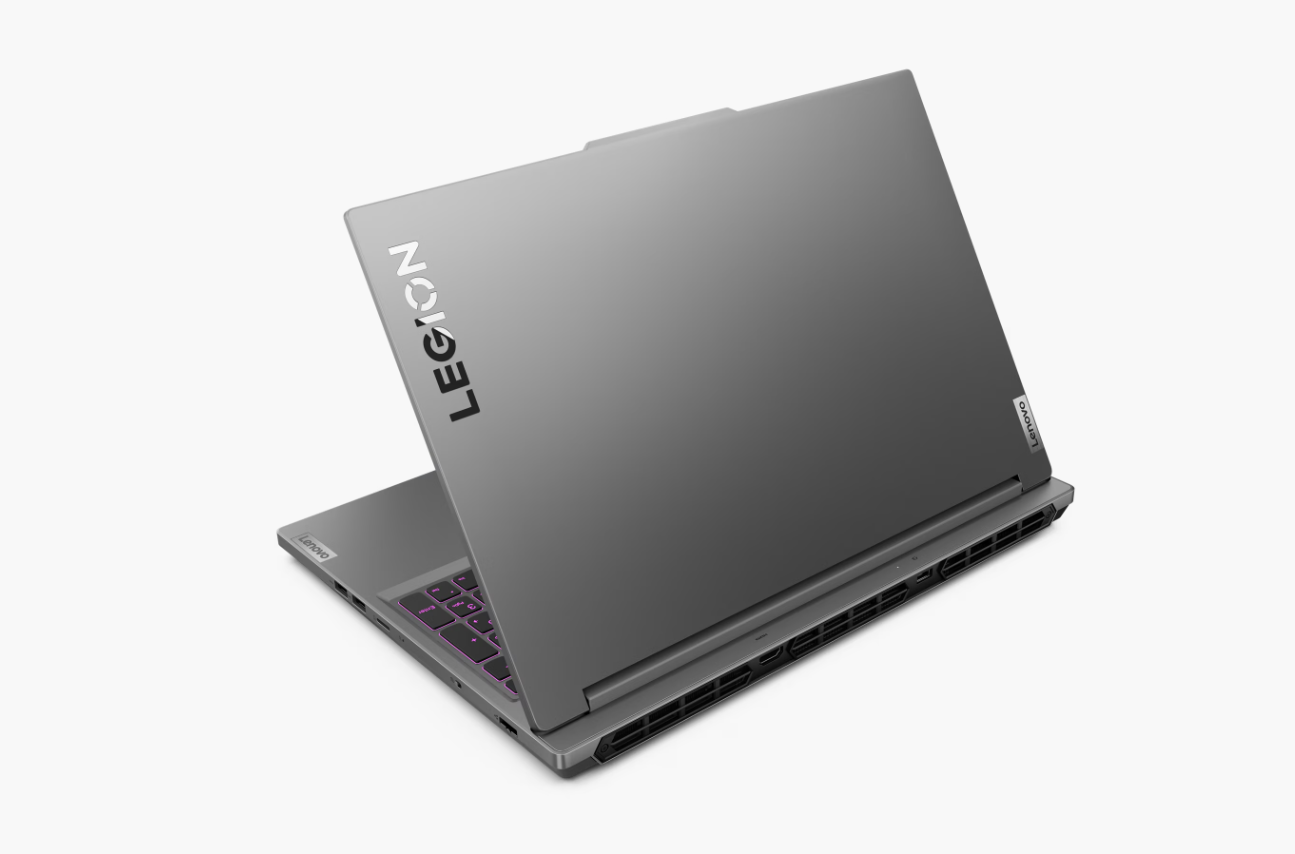

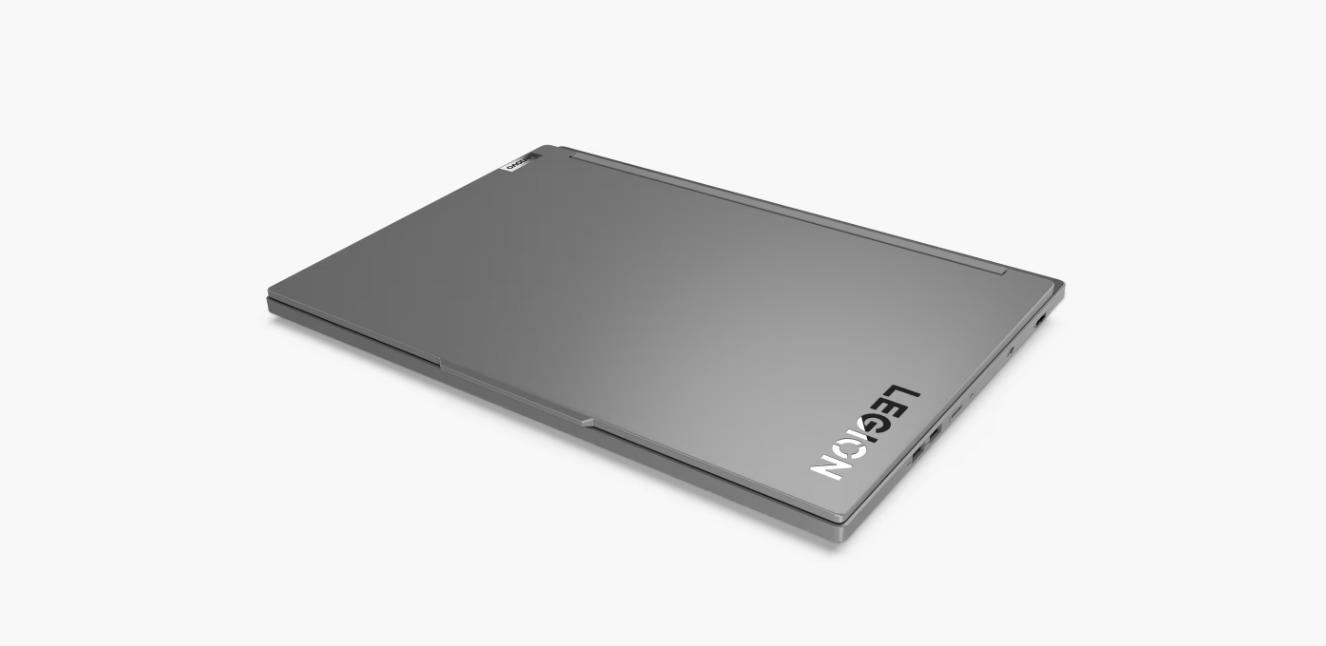

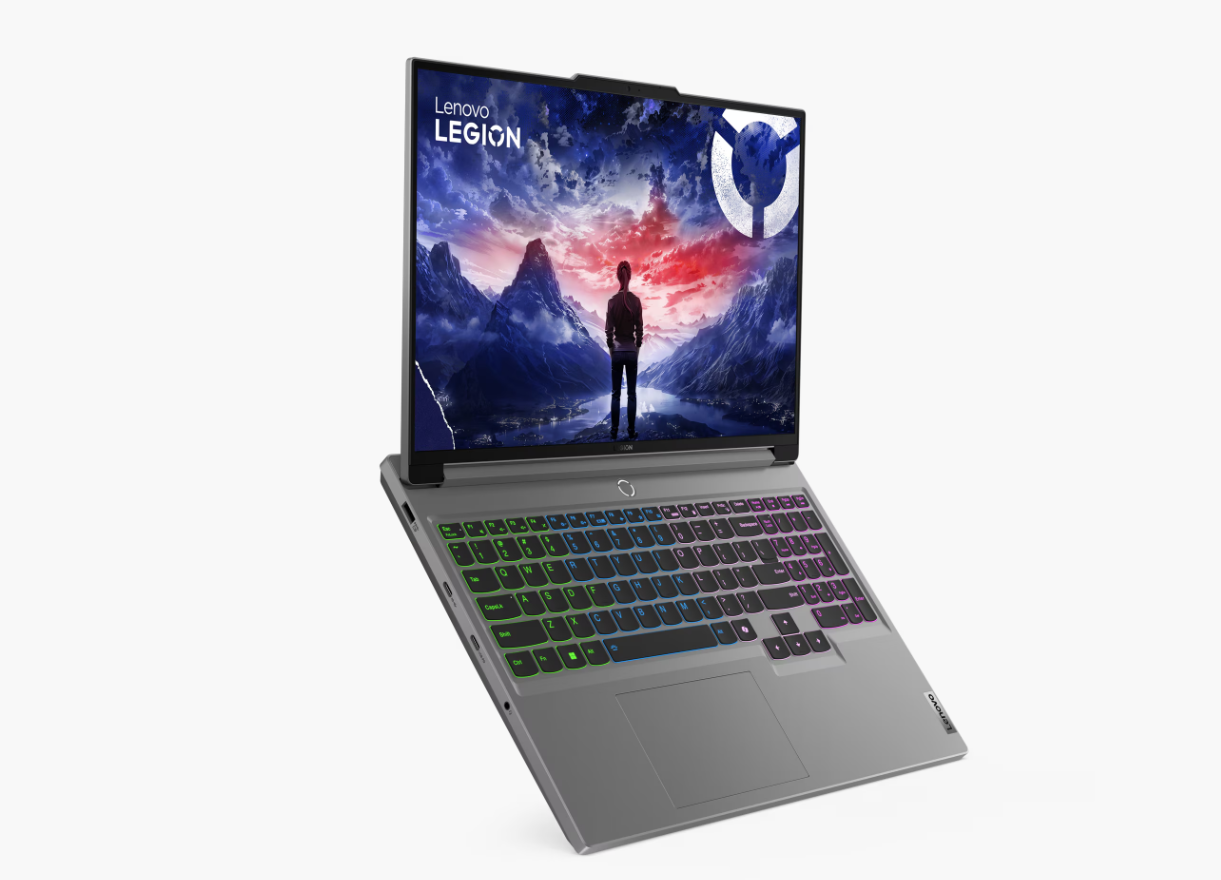

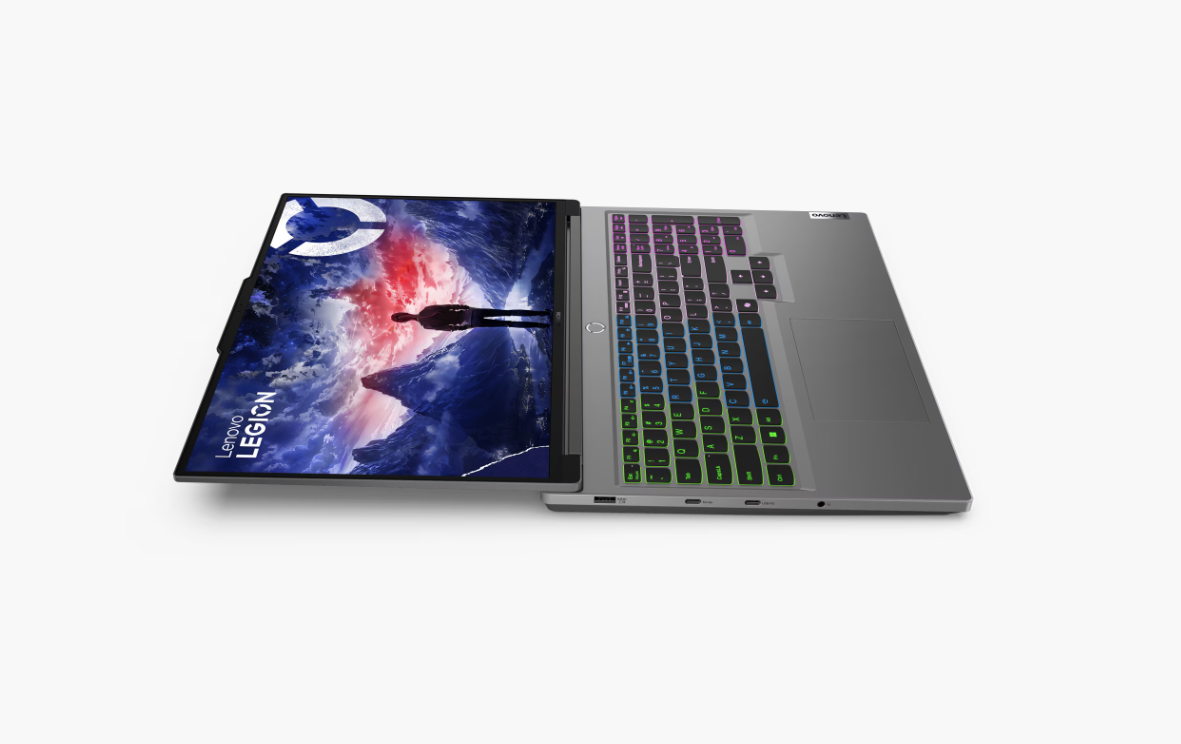

Lenovo Legion 5 16IRX9
Lenovo Legion 5 16IRX9 is your ideal companion, perfectly suited for both thrilling gaming escapades and conquering demanding STEM projects. Fueled by cutting-edge Intel Core 14th gen processors and the sheer power of NVIDIA GeForce RTX 40 Series graphics, it is designed to empower your gaming passions and ace your academic pursuits. The Lenovo AI Engine with LA1 AI chip turbocharges your gaming prowess and more. Wave goodbye to overheating woes and noisy fans, thanks to the revolutionary Legion Cold Front Hyper technology, and dive into mesmerizing visuals on the Lenovo Pure Sight Gaming display. Customize your gaming haven with the dazzling Legion Spectrum 4-zone RGB lighting on the Legion TrueStrike keyboard. All wrapped up in a sleek, portable design.
This item is not available for purchase. Contact us for more information.
| Performance | |
| Processor | Intel® Core™ i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36MB |
| AI PC Category | AI-Powered Gaming PC |
| Graphics | NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W, 233 AI TOPS |
| Chipset | Intel® HM770 Chipset |
| Memory | 2x 16GB SO-DIMM DDR5-5600 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 |
| Storage | 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Storage Slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Card Reader | microSD Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, optimized with Nahimic Audio |
| Camera | FHD 1080p with E-shutter |
| Microphone | 2x, Array |
| Battery | Integrated 80Wh |
| Power Adapter | 230W Slim Tip (3-pin) |
| Special Features | AI Chip; LA1 |
| Design | |
| Display | 16 inch WQXGA (2560x1600) IPS 500nits Anti-glare, 100% sRGB, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light |
| Touchscreen | None |
| Color Calibration | Factory Color Calibration |
| Keyboard | 4-Zone RGB Backlit, English (US) |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches) |
| Case Color | Luna Grey |
| Surface Treatment | Aluminium Stamping (Anodized with Sandblasting) |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Pen | Pen Not Supported |
| Dimensions (WxDxH) | 359.7 x 262.3 x 19.7-25.2 mm (14.16 x 10.33 x 0.78-0.99 inches) |
| Weight | Around 2.36 kg (5.2 lbs) |
| Software | |
| Operating System | Windows® 11 Home, English |
| Bundled Software | Office Trial |
| Connectivity | |
| Ethernet | 100/1000M (RJ-45) |
| WLAN + Bluetooth | Wi-Fi® 6E, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Standard Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Card reader 1x Power connector |
| Security & Privacy | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| Service | |
| Base Warranty | 1-year |
| Included Upgrade | None |
| Certification | |
| Green Certifications | ErP Lot 6/26 RoHS compliant |
| Other Certifications | TÜV Rheinland® Low Blue Light (Hardware Solution) |
| Model Information | |
| Model | 83DG00AGUS |
| Country/Region | USA |
